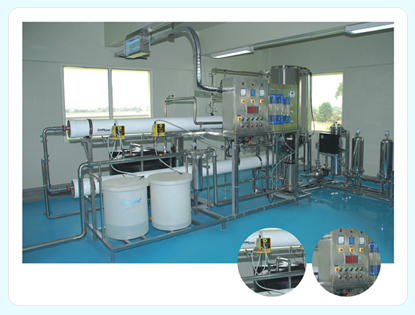

R.O Systems for Packaged Drinking Water
As per IS – 14543 – 2004 (For Packaged Drinking Water) |
|
Unique features of Aquasagar :
· Reverse Osmosis system allows you to consistently produce high quality water from variety of application with compact designs, low maintenance, and simplicity in operation.
· Aquasagar presents contemporary technology for hassle-free operations. With a vision to keep our clients in complete peace of mind, our R & D department is in a continuous process of innovation thus enabling us to deliver the best.
· With ground-breaking technology and expertise under the belt, we are in a position to manufacture almost all the parts in-house. This
ensures absolute system reliability and stability.
· We manufacture custom designed R.O. systems as per clients' requirements / capacity from 1000 LPH to |
| |

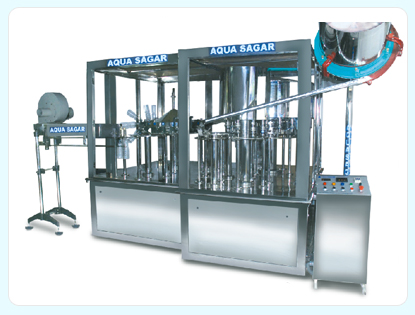

AUTOMATIC ROTARY BOTTLE RINSING, FILLING & CAPPING MACHINE |
|
| FILLING SECTION |
· Gravity filling mechanism - suitable for room temperature.
· Tank is made of SS 316 with internal polished mirror Finish.
· The Filling nozzle is SS 316 & SS 304.
· No Bottle - no Fill arrangement
· The Filling nozzle seals are made of Food Grade Silicon rubber.
· The Bottle gripper is made of SS 304.
· Lift cylinders are made of LM6 Aluminum with PB material.
· No change over parts to fill the bottle from 100ml to |
|
| |
| RINSING SECTION |
· Rinser top plate made of SS 304
· Bottle gripper mounted with UHMWPE bracket
· Bottle grippers are made of SS 304 with machining for CNC machine.
· Rinser jet valve body is made of SS 304.
· The opening of the rinsing nozzle is the bottle place over the rinsing jet and turned at 180 degree by a mechanical cam |
| |
| CAPPING SECTION |
· Capping section suitable for application of screw on caps
· Hopper for mechanical cap feeder passes the caps into distributors chute.
· Sensors are provided which detect the caps in the chute.
· Individual cap washing arrangement is fitted on chute.
· No Bottle - no Cap system is provided. |
MODEL RFC |
Machine Dimension |
OUTPUT BPM |
ELECTRIC LOAD HP |
6X8X3 |
1700 X 1300 X 2135 |
30 |
2 |
10 X 10 X 5 |
1740 X 1740 X 2135 |
40 |
2.5 |
14 X 14 X 6 |
1920 X 1760 X 2135 |
60 |
3 |
20 X 20 X 8 |
2600 X 2020 X 2440 |
90 |
5 |
24 X 24 X 10 |
3000 X 2100 X 2440 |
120 |
7 |
30 X 30 X 12 |
3250 X 2400 X 2440 |
180 |
9 |
|
· Imported Gear Box (Italy) Bonfiglioli.
· Variable Speed Through Frequency Drive (VFD)
· Clutch and Break System provided to prevent damages to the machine.
· Detachable Control Panel.
· Easy Maintenance & Servicing Space in Machine.
Note: Product development is a continuous process. Consequently the specification mentioned in this folder is subjected to change without prior notice. |
| |
