All types of :  Air Compressors Sales Service & Spare parts

No.1 Dealers & Supplier Of All Types Compressors, Such As Ingersoll Rand, Elgi, Fouji, Chicago Pneumatic Etc. Specialized For Air Compressor, Water Cooled, Reciprocating, Lubricated-Non Lubricated Compressors, Vacuum Pumps ( Piston Compressor-Non Lubricated / Lubricated ) Moisture Separator, Air Dryer, Refrigerated Air Dryer, Auto Drain Valve, Also Compressors Part & Accessories Crank Shaft, Piston Ring, Valve Plate, Cylinder, Graded Casting / Shell Moulding, Repairs & Spare Parts For All types Of Air Compressors ( 24 x 365 Service For Hospital, Pharma Co., Medical Center )
1 HP to 60 HP
Air & Water Cooled , Reciprocating, Lubricated, Non-Lubricated Compressors & Vacuum Pumps
 Ease of installation & maintenance
Low Oil Consumption
Fully balanced, Vibration free, quieter operation
Easy accessability of spares at economical price
World class quality at fair price
Single Stage Compressors ( For Low Pressure : 2-6 ( Kg / cm 2 )
Model Motor No. of Cyl. Comp RPM Receiver LTR Max. Pressure
PISTON DISPL. CFM
HP KW PSIG KG/CM2
1235 3/5 2.2 / 3.70 2 675 / 980 150 80 5.62 15.18 / 22
1244 5 / 7.5 3.70 / 5.50 2 660 / 865 225 80 5.62 26.50 / 34.64
1255 7.5 / 10 5.50 / 7.5 2 505 / 660 225 80 5.62 40.00 / 52.50
17S2 12.5 / 15 9.30 / 11 2 800 300 40 2.81 88.00 / 95.00
115S2 15/20 11/15 3 850 500 40 2.81 99.00 / 140.15
Two Stage Compressors ( For Medium Pressure :7-17.5 ( Kg / cm 2 )
Model Motor No.of Cyl. Comp RPM Receiver LTR Max. Pressure
PISTON DISPL. CFM
HP KW PSIG KG/CM2
1234 2/3 1.5/2.2 2 675 / 960 150 175 12.3 7.59 / 10.80
12340 3 2.20 2 1000 150 175 12.3 11.25
1242 5 / 7.5 3.70 / 5.50 2 865 / 1000 225 175 12.3 17.32 / 20
12475 7.5 5.50 2 1100 225 175 12.3 22
1253 7.5 / 10 5.5 / 7.5 2 660 300 175 / 220 12.3 / 17.5 26.23
12545 7.5 / 10 5.50 / 7.5 2 750 / 950 300 175 12.3 29.81 / 37.80
171T2 10 / 12.5 / 15 7.5 / 9.3 / 11 2 725 / 900 / 1000 300 175 12.3 40 / 49.5 / 55
115T 15 / 20 11 / 15 3 700 / 900 500 175 12.3 63.50 / 81.80
125T2 25 / 30 18.5 / 22 3 900 / 1000 500 175 12.3 99 / 110
Single & Two Stage Dry Vacuum Pumps
Model Motor No.of Cyl Comp.RPM Vacuum (HG) Press inch Piston Dspl. cfm
HP KW
V 1235 1.5 1.10 2 960 29 21.60
V 1235T 1.5 1.10 2 960 29.6 10.80
V 1244 2 1.50 2 866 29.0 34.60
V 1244T 2 1.50 2 866 29.6 17.30

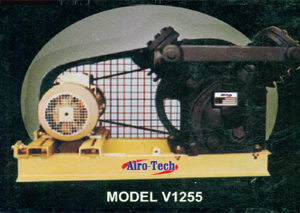

V 1255 5 3.70 2 750 29.0 59.65
V 1255T 5 3.70 2 750 29.6 29.82
V 17V 7.5 5.5 2 1000 29 110
17VT 7.5 5.5 2 1000 29.6 55
115 V 10 7.5 3 900 29 148.5
115 VT 10 7.5 3 900 29.6 99
