Test Terminal Block, Semaphore Indicator, OMHB Discrepancy Switches, HRC Fuse Fittings, Neutral Links, Indicating Lamps, Mumbai, India
Test Terminal Block, Semaphore Indicator, OMHB Discrepancy Switches, HRC Fuse Fittings & Neutral Links, Indicating Lamps, Mumbai, India
     Manufacturers Of .........................

Test Terminal Block

OMHB Discrepancy Switches

Cut out diag. for 3Ø - 4W TTB

HRC Fuse Holders

Cut out diag. for 3Ø - 4W TTB
Compact model

Indicating Lamps

Cut out diag. for 3Ø - 3W TTB

Push Buttons & Contact Elements

Export Type TTB

Semaphore Indicator


DAV INDUSTRIES is the flagship Company of DAV Group of Companies, who have been in the business of manufacturing Control panel Accessories in India for over (20) years The group as a whole has many diversified interests ranging from manufacture of Control panel Accessories to design and manufacture of High pressure Filtration Systems to manufacture Cryogenic Equipment.

     Our Product Range -----------

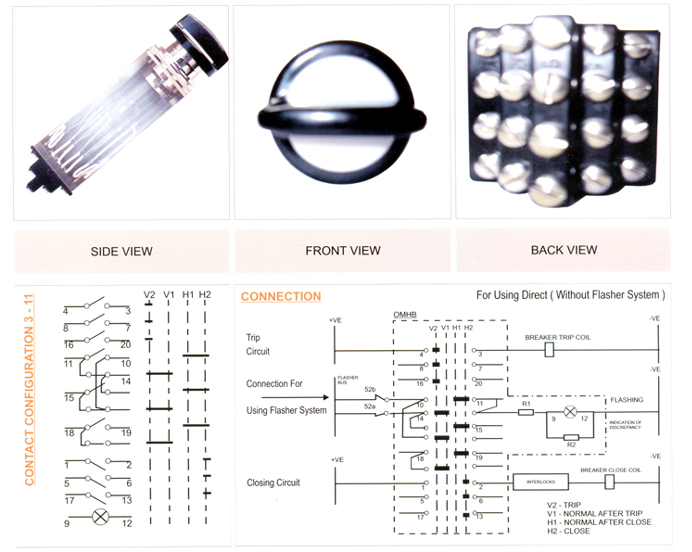

OMHB Discrepancy Switches
OMHB Discrepancy Switches

Features :-

Built-in discrepancy lamp, Robust Design, Adapability for any thickness (2-8mm), Spring Resetting, Light Weight, Space Saving

APPLICATION
Control Switches are mainly used for remote operations like closing and tripping of circuit breakers and isolators . Simultaneously, they can indicate the position (open or close) of such controlled objects.The built-in lamps can be connected to the flasher relays, to annunciate any discrepancy between the position of switches and objects.

DESIGN
The OMHB is characterised by its small space requirements despite the large number of contacts and robus~ design. The control switch is dust proof and protected against contact with live parts. The external connections arel carried out on the terminals which are placed at the rear, on terminal bock.
The control switch is designed for panel mounting and consists of spring type contact units with silver rivets. The control switch is mounted in a single hole on a panel with the knob in the front. The signal lamp can be replaced from the front after the knob has been pulled out. The knob of the control switch is insulating material with an opaque white window. The knob has two rest positions with an angle of 90' between them and an operating position approximately 30' away from each rest position. The knob must be pressed before it can be turned from a rest to its corresponding operative position. It has spring return feature from the operating to the rest position.
---------------------------------------------------------------------------------------------------------------------------------------------------

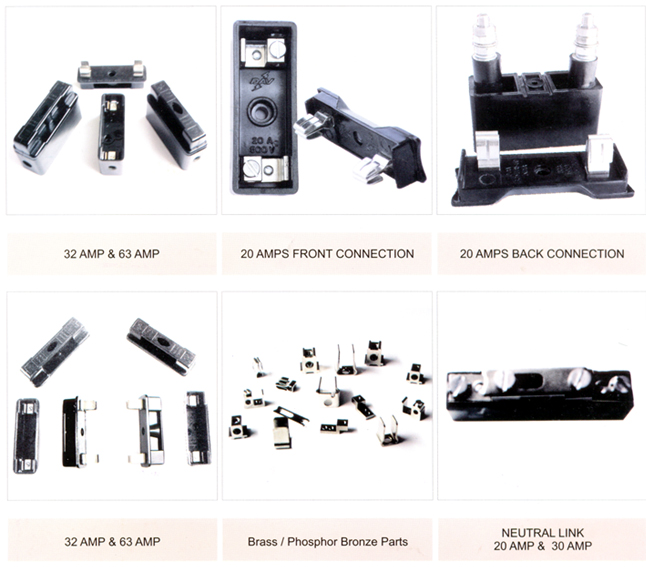

HRC Fuse Fittings & Neutral Links
HRC Fuse Fittings & Neutral Links
Features ----
Base and Carrier are moulded from High Grade Phenolic Moulding Powder.
Base and Carrier mouldings are non-inflammable and non hygroscopic surface.
Phosphos Bronze contact to ensure firm contact with base; contact block made of brass.
Tested as per IS:13703 ( Part 1 ) : 1993. at RTC ( Regional Testing Centre, Mumbai ) for :-
High Voltage Test
Insulation resistance Test
Temperature Rise Test
---------------------------------------------------------------------------------------------------------------------------------------------------

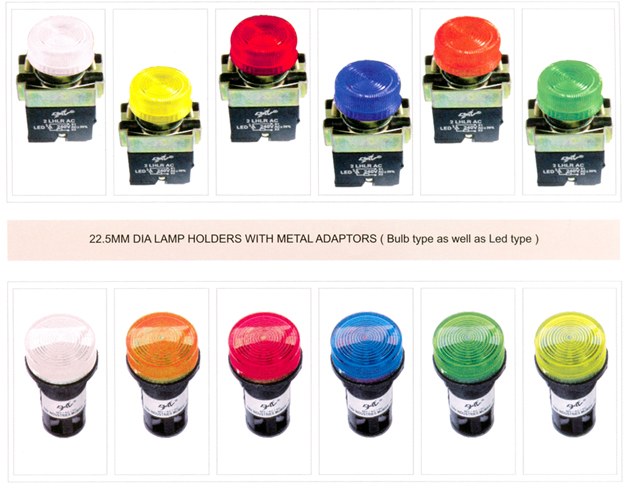

Indicating Lamps
Indicating Lamps
Special Features ----
Best Illumination due to maximum luminous
LEDs. Suitable for standard voltage ranges.
Non standard voltage ranges available on request.
80% Energy Saving. Zero failure probability due to LED technology.
Immune to vibration and shock resistance. Fits with 22.5mm standard cutouts.
Low ( Leakage ) voltage glow protection. Tested and certified as per IS13947 ( Part 5 / Sec 1 ) : 1993.
Rugged, Long lasting & Economic.
---------------------------------------------------------------------------------------------------------------------------------------------------

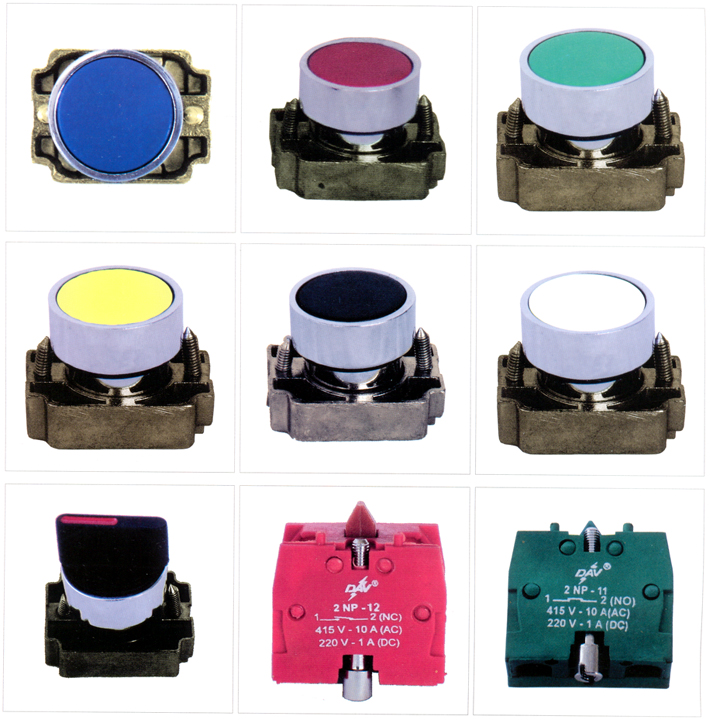

Push Buttons & Contact Elements
Push Buttons & Contact Elements

• Push Buttons are available in 22.5mm cutout dia.
• For 22.5mm dia push button knob 1No or 1NC contact element provided. Maximum 4 contats in any   combination    of No or NC can be provided.
• Contacts are of make before break type rating of each contact is 6A @ 415 AC and 1A @; 250V DC
  ( breaking )
---------------------------------------------------------------------------------------------------------------------------------------------------


     Our Profile -----------

DAV INDUSTRIES has been manufacturing Control Panel Accessories for over 30 yers.
Dav Industries is promoted and run by a team of 5 professionals qualified from premier Indian Engineering Institutions, having both National and International experience.

The team is a combination of both experienced and dynamic young technocrats.

Today,

DAV INDUSTRIES is well known for ' QUALITY' standards and TIMELY DELIVERY.

The products are also exported widely to the Middle East, South Africa & Far East. Our products are type tested in independent laboratories like IDEMI & RTC and are approved in PGCIL, NPCIL, State Electricity Boards like MSEB, MPEB, GEB, APSEB, KEB, UPSEB, etc. Railways and consultants like TATA Consulting Enginers, Uhde India Ltd. etc.


Product Profile ------

• Automatic Semaphore Indicators
• Test Terminal Block
• HRC Fuse Bases & Neutral Links
• Indicating Lamps
• Push Buttons & Contact Elements
• OMHB Discrepancy Switch
