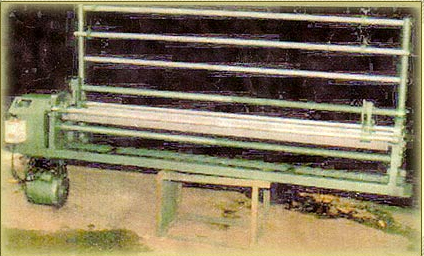

Portable Batching Machine No. 1

Portable Batch Rolling Size 48" Or 65"

Motor Capacity	:	0.5HP x 220/230V IPHS x 50/60HZ x 1440RPM
Loading Capacity	:	45 Kg/per 100mts
Overall Dimension	:	In 48" M/C W=14" x L=65" x H=30" Overall weight - 125 Kg In 58 " M/C W=14" x L=78" x H=30" Overall weight - 135 Kg
Winding Speed	:	12 mts/30 sec
Working Width	:	In 48 " M/C 50 " Maximum In 58 " M/C 65 " Maximum
Anti Scroll Roll	:	2 no. Anti static Roll , 1 no. M.S Roll
Tension Pipe with Width Adjustable Guide	:	4 no.
Base Roll	:	1 no. with emery Rubber Filet & 1 no. Anti static Roll

Portable Batching Machine No. 2

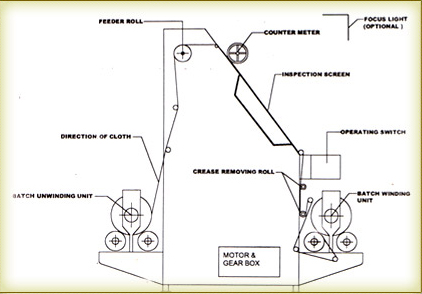

Inspection Machine No. 2

INSPECTION WITH BATCHING M/C 72" or 130"

Motor Capacity	:	1HP x 220/230V IPHS AC or DC 50/60HZ x 1440RPM & 3HP x 220/230V IPHS AC or DC x 1440RPM
Loading Capacity	:	250 KG/per 100mtrs in 72" M/C & 400kg/per 100mts
Overall Dimension	:	In 72" M/C W=28" x L=78" x H=48" Overall weight - 250 Kg In 130 " M/C W=35" x L=140" x H=46" Overall weight - 400 Kg
CHECKING SPEED WITH WINDING	:	12 or 18 mts/mnt in AC drive or in DC drive 0 to 50 mts/mnt
Working Width	:	In 72" M/C 72" Maximum In 130" M/C 130" Maximum
Anti Scroll Roll	:	3 no. M.S Roll
Tension Pipe with Width Adjustable Guide	:	10 no.
Base Roll	:	2 no. with emery Rubber Filet
