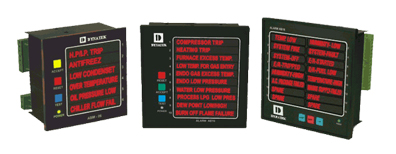

| Alarm Annunciator | |||
 |
|||
| INTRODUCTION | |||
|
Any
manufacturing process or equipment needs close monitoring, it is
effectively done by employing Annunciation system. The system provides
Audio and Visual indication of faults. DYNATEK make AB/ABM series
is one of the most advanced, highly reliable and compact micro-controller
based alarm annunciation system. The system offers annunciation
with signaling and Auxiliary (open collector) output. Annunciation
inputs are connected to potential free contacts. When fault condition
occurs in any one of the connected inputs, annunciator indicates
the fault by flashing respective window and energies Hooter Relay.
The AB / ABM series inputs have site selection facility for “NO”
(make to alarm) and “NC” (break to alarm). User can connect
a Hooter through relay for Audio alarm. Facility to connect external
“Test, Accept & Reset” push buttons is available on
the back side terminals. Dual rate flashing is provided for differentiating
the first & subsequent faults.
|
|||
| Diesel Engine Controller | |||
 |
Introduction
:
Dynatek make “ECR 16” is one of the most user friendly, Highly reliable & compact microcontroller based Engine Crank Relay system. This system offers annunciation and controlling with Audio / Visual signal & potential free o/p contact. It has Auto / Manual mode. |
||
| AMF Controller | |||
|
Introduction
Dynatek make ‘AMF CONTROLLER‘ is one of the most user friendly, Highly reliable & compact microcontroller based AMF Relay system. It is cost effective solution for AMF Controlling system. Most advanced technology is used to provide maximum features required for AMF Controlling system. It offers annunciation and controlling with Audio / Visual signal & potential free o/p contact. It works in Auto, Manual & Test mode |
||
|
When AMF CONTROLLER is in Auto Mode, it continuously scans the mains supply. If Mains supply fails for specific period the controller starts cranking the DG set through start relay. Controller undertakes the set attempts. In case if it fails to start the DG after the set attempt it annunciates accordingly and turns ON hooter for Audio signaling. If DG starts in any of the set attempt it allows DG to reach its operating speed to build up the required voltage and then it puts the load on DG by closing DG contactors automatically. On the resumption of healthy mains with required level of mains voltage controller connects the load on mains after the set delay periods & DG set is returned to standby mode for further operation after the required ideal running ( Cool - Off Delay). In manual mode Controller does not react to Mains failure or Mains restoration. All the operations are to be done manually. Controller is
suitable for both 12V & 24V since it has wide operating voltage
range ( 7 VDC to 30 VDC). |
|||
| Compressor Control Panel | |||
 |
Introduction
:
Dynatek offers cost effective solution for Compressor Control systems. The latest technology is put into use to provide maximum features and to make control panel compact. This system offers Annunciation and controlling with audio/visual signal and potential free O/P contacts. Control Panel consists three detachable cards (CPU, Relay & Power) assembled in international EURO standard enclosure to have easy access for site maintenance. The compactness and light weight of control panel makes it ideal to put into Flameproof / Weatherproof enclosures when it is used for LPG / AIR Compressor or used in hazardous area. |
||
|
|||
