Metallic Reflective Insulation, Piping Of Atomic Power Project, Pineapple Slicer, Fruit Mill, Junior Pulper, Super Pulper, Pulper, Finisher, Fruit Washing Machine, India

Profile

We are pleased to introduce ourselves as one of the leading contractors hailing from MUMBAI base. We have gained enough reputation and confidence from our reputed organizations for whom, we have given our services for last 20 years at different sites in INDIA.
Earlier in our service life we had held responsible posts in renowned Engineering Companies. Our's is a partnership concern of family members who had gained sufficient knowledge in executing various types of jobs at different sites.
We undertake Design, Fabrication, Erection & Commissioning work as per various codes in practice of 'UNFIRED PRESSURE VESSELS' in Ferrous / Non Ferrous alloy Metals with SMAW /GTAW Welding Techniques under third party inspection as per following details.

A. Fabrication & Installation of S.S. / M.S. Piping along with Miter bend fabrication with S.M.A.W./G.T.A.W. Process.
B. Reaction Vessels, Industrial Mixers with Motor mounting Structures etc. & Ribbon Blenders with specially design heating system
ranging from 100° to 300°C.
C. Vertical/Horizontal Tanks & Silos.
D. Heat Exchangers/Condensers.
E. Mobile Tanks like Road/Railway Milk Tankers with Insulation (Hot/ Cold)
F. Heavy Duty/Light Duty Structural Work.
G. All types of Ducting work with Control Dampers, Grills etc.
H. Complete Machineries/Equipments for Food Processing Industries.
I. Metallic Reflective Insulation with air as barrier which is replaced by conventional Insulation with

following better Advantages:
* Better K - value, which results in best heat recovery.
* Fabricated to suit customer's Design, in parts, light weight, handy to install & remove for inspection of inner parts, weld joints.
* Controls Radiation Hazards.
* One time expenditure with long life, Strong enough to maintain the original Shape with reinforcement structure.

We have got on our roll sufficient number of highly Skilled Engineers, Supervisors, qualified Welders in 6G Position for Similar/Dissimilar Metals with 100% radiography Work, Experienced Riggers, Semiskilled workmen with sufficient quantity of Tools, Tackles & Machines.
We have handled various types of jobs for Oil Refineries, Chemical, Fertilizers, Pharmaceutical, Dairy, Food Processing and Atomic Power Plants in INDIA in different States as per requirements.
Our past experience can be verified from our Work orders / Purchase Orders.
Hope you will be kind enough to consider our experience in this field and give us a chance to prove our capability.

Products

Metallic Reflective Insulation

We here with introduce a latest, indigenous better and superior quality of insulation system. 'The Metallic mirror, Reflective Insulation System', for various types of process vessels, associated piping & its equipments mostly used in Nuclear, Thermal & process Industries, a better alternative to the conventional Insulation.
After increasing awareness developed in keeping plants clean and safe, reducing trouble shooting problems and downtimes during shutdown period, the Metallic Reflective Insulation is playing a major role in satisfying all you needs.
The Reflective insulation is a thermal insulation that, reduces heat transfer across spaces by the use of surface of high reflection and low emittance.
The Metallic Reflective Insulation is presently in use in all modern, advance countries and has become very popular because of its many Advantages over Metallic Reflective Insulation is :
Sturdy & Robust - Since it is fabricated from Aluminum / Stainless steel sheets it is sturdy & Robust in shapes, has a high mechanical strength, And has no mechanical disintegration.
Since it is all metal construction it is,

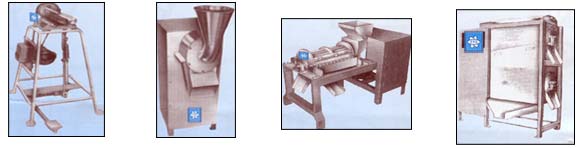

Pineapple Slicer

Fruit Mill

Junior / Super Pulper

Pulper / Finisher

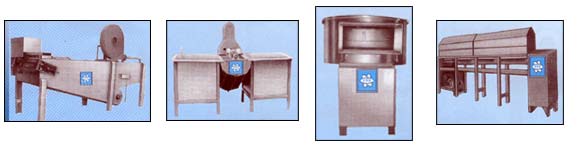

fruit washing machine, Bottle washing machine, can washer, straight line exhaust box

Fruit Washing Machine

Bottle Washing Machine

Can Washer

Straight Line Exhaust Box

MIXER CUM ROASTER
GENERAL:	This is Roaster cum deep fat fryer; this Machine is suitable for roasting or deep frying of various Ingredients. The Roasting is achieved at 180⁰ C.
UTILITY:	Power Supply, 440 Volts A.C. 3 Phase 50 Hz. 4 Wire for Electric Motor / Heater with 32 Amps. Main Switch.
PROCESS DESCRIPTION:	This is a rapid Roasting Machine used for Frying / roasting Onion, Coriander, Coconut and for removing moisture & increasing shelf life of Powder, Chemicals, Spices. The blender consists of outer & inner spiral ribbons supported on a centrally mounted longitudinal axis. When the agitator rotates, the material is carried radially around the inside of the blender. Outer & inner ribbon moves the material in opposite directions. Thus triple mixing action takes place. The 'Hytherm 500'Thermic fluid oil (H.P. Make) in the jacket is heated by 2 Nos. Oil immersion Heaters of 3 K.W. Each inserted from 2 Pockets at the corner of the Mixer. Once the oil in the jacket is heated, the material in the container is uniformly mixed or heated by specially designed helical shape Blades. The impeller is driven by Electric Motor. To avoid heat loss the jacket is insulated by glass wool & covered with M.S. plate. The Thermostat inserted in the Jacket controls the Temperature of the Thermic fluid oil. The Thermostat is connected to the Control Panel & the Temperature is maintained. It is ideal to set the Thermostat at 180⁰ to 185⁰ C.

JUICE EXTRACTOR (Hand operated)
GENERAL:	The machine is used to extract the juices from soft fruits like orange, grapes etc. The machine is conical screw feeder type with top feeding arrangement and bottom discharge separately for juice & pulp. All the contact parts are of Stainless Steel. The machine is available with Hand operated facility.
UTILITY:	No power Supply required, Hand operated.
CAPACITY :	The machine capacity is 30 Kg./ Hr.

JUICE EXTRACTOR (Pulper type)
GENERAL:	The machine is used to extract juice & pulp from fruits like Mango, Chikku, Papaya, etc. & Vegetables. The Machine is driven by Electric Motor consisting of rotary blades, scrapers along with the sieves. The Machine can be used as Finisher by changing the sieves.
UTILITY:	Power Supply, 440 Volts A.C. 3 Phase 50 Hz. 4 Wire for Electric Motor of 2 HP.
CAPACITY :	The Machine capacity is 100 - 150 Kg. / Hr.

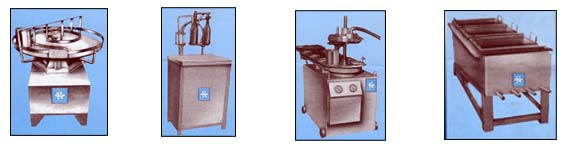

Scrambler

Bottel Filling Machines

Can Filter

Lye Peeling

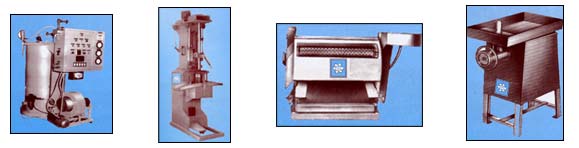

Boiler

Pineapple Sizer

Pealing Machine

Meat Mincer

MANUFACTURERS OF DAIRY EQUIPMENTS
CONSULTANTS FOR DAIRY PLANTS


ROAD MILK TANKER DAIRY PLANT	HORIZONTAL INSULATED STORAGE TANK


VERTICAL STORAGE TANK & ROAD MILK TANKERS DAIRY PLANT	SPRAY DRYER HOT AIR DUCTING LINE	HORIZONTAL INSULATED STORAGE TANK

* Fabrication / Erection of Entire Dairy Plants.
* Fabrication / Erection of Spray Dryers and it’s Pipelines.
* Installation of Roller Drier Unit with Steam Line.
* Road Milk Tankers, Railway Milk Tankers and other Works in Food
Industry for Hygienic Products.

Contact

Regd. Office : A-202, Satyam, Evershine Enclave, Mira Rd. (E) - 401107, Dist.Thane, Maharashtra, INDIA
Tel: +91-22-28457368 Fax : +91-22- 2845 4622 Website : www.fansbroerectors.com Email : [email protected]
