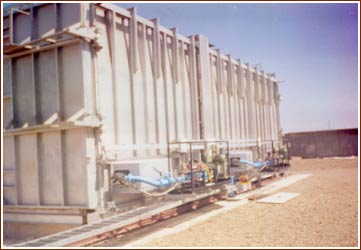

1)    Permanent Low Thermal Mass Furnaces for heat treatment by Oil / Gas / Electrical mode of heating.  Types of         furnaces comes under the category are Bogie Hearth Furnace, Top Hat Furnace, Fixed Hearth Furnace, Pit type          Furnace, Box Furnace, Roller Hearth Furnace etc.
2)    Temporary Low Thermal Mass Furnace for Stress Relieving, Normalizing, Solution Annealing etc.

B.   Heat  Treatment Equipment :

1)    High velocity oil & gas fired  burner system provides capacity from 5,00,000  kcal/hr up to max. 8,000,000 kcal / hr.
2)    Heat treatment low voltage power source of 40,50,75,100,125 kva capacity.
3)    Heat Treatment Distribution Panel.
4)    Flexible Ceramic Pads operating at 45V, 60V, 80V, 230 V.
5)    Electric Channel Elements.
6)    Programmer Controller, 03 Point, 06 Point, 12 Point Inlet.
7)    Thermocouple attachment unit.
8)    Twin / Trinary Heat  Module for Portable Operation.
9)    Thermocouple ( Simplex / Duplex, Wire type )

Equipment Details :-

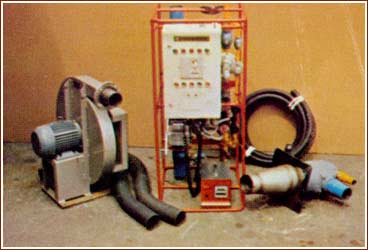

1)  Oil / Gas Fired High Velocity Burner :-

The Indotherm Oil / Gas high velocity burner systems provide from 5,00,000 kcal/hr up to 8,000,000 Kcal/hr ( 2000,000 Btu/hr to 32,000,000 Btu/hr ).  For On Site Heat Treatment from a flame supervised, automatic/ manually controlled, nozzle mix high velocity burner which will operate on all commercially available fuels.

The burner is a fabricated of stainless steel, directly spark ignited.

2)   Heat Treatment Power Source :-    Available in 40 Kva, 50 Kva, 75 Kva & 100 Kva capacity.  Provides safe low voltage power 60/65 V & 80/85 V to feed flexible ceramic heaters for the purpose of  preheating & post weld heat treatment.   This units are housed in rigid steel frame of heavy gauge sheet steel cabinet for mobility, well balanced and quality powder  coated  finish insulated to class 'h' standards & windings  are air natural / forced cool. The unit is operating on primary input supply of 3 phase 380 v/415v/440v.  The unit can be fitted with either 3 way or 6 way contactorised control   modules. Energy regulators are fitted for control of heat treatment cycle.

3)  Twin / Trinary Heat Module : The unit  is operating on main power supply of 230/240 v. The advantage of the unit is its portability.  It can be easily transfer to various locations.  The unit is provided with energy regulators for accurate control of temperature.
