We have paced ahead & excelled in the industry, due to our committed work attitude & ability to solve the most critical situation.
Company is having strong foundation of professional business ethics. Partners are having in depth technical knowledge of various automation products and automation processes Company is building flexible and competent work force with team of motivated engineers Company has good manufacturing and project execution setup. While providing a service to OEM and End user we work as a extended Automation and Electrical department of our customer.
We are engaged in providing the following:
• Complete engineering of control system including conceptualisation, designing, detailing, manufacturing & commissioning
• Manufacturing of control panel & commissioning
• Programming & commissioning of PLCs & HMIs
• Providing SCADA software
• Retrofitting of electrical systems in old machines
• Customised training programme |
|
| |
|
| About
Us |
Since,
1999, Innovative Solutions has been flourishing in
the Automation Industry, by providing remarkable Engineering
& Automation solutions to various industries.
We provide ceaseless services, right from Concept
Systems to Manufacturing & Commissioning. We have
the drive, the knowledge and the expertise to deliver
the best solutions to you, at very cost-effective
rates.
We are the authorised System House for Messung Systems
& Mitsubishi Electric FA Products, providing unique
solutions & services to suite various applications.
Our in-depth experience in the field of Machine Automation,
Material Handling Systems & Process Automation
has helped us evolve as a System Hub for our customers.
The work culture, committed services & quality
standard procedures that we abide with help us stay
ahead in our field.
We make constant endeavours to satisfy our customers
& maintain quality standards & high end services
in all our work. We believe in continuously evolving,
by offering the best technical support & integrated
solutions to our customers.
|
|
|

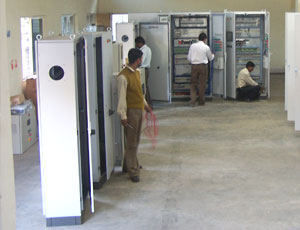

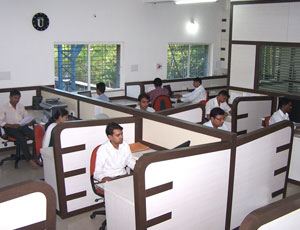

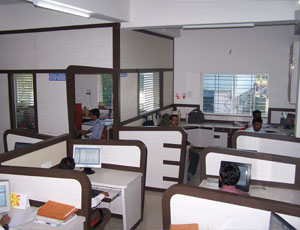

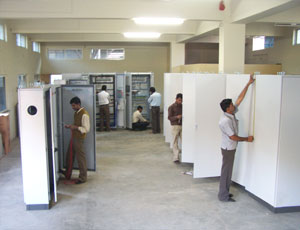

STATE OF ART INFRASTRUCTURE
|
|
|
|
|
|
| |
|
Products |
| |
| Micro PLCs |
Modular PLCs |
| FX 3U/3G/3GE/3S/5U |
Melsec Q / QnU / L Series |
|
 |
• High efficiency with more speed, performance,Memory, & new functions
• Expansion boards, adapters, special function blocks & I/O expansions
• Built-in high speed processing & positioning
• Varity of I/O controls from 10-384 points with CCLink remote I/O
• Analog Control, High Speed control, Serial Communication, Networking, Ethernet
• Large memory up to 64000 steps
• Instruction speed min. 0.65 μs
• Flash Memory cassette with loader functionality also available
• Built-in up to 4 axis positioning control
• CC-Link IE Field |
• High speed /High precision data processing
• Processing speed of 34 ns
• Built-in Ethernet/USB Port
• Support for multiple programs
• Multiple CPU System configuration
• Analog control, Serial communication, Networking, CCLink, CCLink/LT
• Seamless remote/online program maintenance
• I/O controls from 256 to 4096 points (8192 with CCLink remote I/O)
• Up to 64 modules in 7 extensions installable
• Up to 252K Prog. steps (1008 kByte) integrated RAM
• Motion CPU with Positioning of 8 - 32 axis per module (up to 96 axis total)
• Built CPU positioning control function
|
|
GOTs |
AC Drives |
| GT10 / GT14 / GT2000 & GS Series |
Variable Frequency Drives |
|
 |
• 4 Series of GOTs to fit demanding systems and tight budget
• Various display sizes from 3.7” monochrome to15” TFT LCD color displays
• Multiple communi. port RS232, RS422/485, Ethernet
• USB host & USB device ports
• User memory capacity upto 15 MB
• Option of Multimedia unit, Audio output unit, Video/RGB Unit, Printer unit, CF Card (ext.unit)
• Multi-channel function, Document display function, MES interface function
• Multilingual support, Advance recipe function,
Script function
• Operator authentication function
• Back-up/restoration function, Ladder editor/monitor function
• Zoom in to easily operate, scroll the display to show the area you want to operate. |
FREQROL A/E/D/F700/FRA800 Series
• Real sensor less vector control
• Built in functions like:
- Torque Control, Position Control
- PID, Catch-Spin, Droop Control
- Brake - up to 55 kW
• V/F control & advance magnetic flux control
• Online Auto-tuning
• 10 year life for capacitor & cooling fan
• RS 485 & USB connection
• Modbus RTU communication
• Built in PLC function
• Quick response to fluctuating load
• Regeneration avoidance function
• Enhance energy saving
• High overload capacity
• Special Drive FRF700 for Fan, Pump
• Brake sequence control in E & A series drive
• Communication options for major network
protocols :
- CC- Link and SSCNET III/H
- DeviceNet , PROFIBUS-DVP0. |
|
MELSEC iQ-R Series
iQ Platform-compatible PAC |
GOC |
 |
 |
• Improved productivity by optimizing
product line
• Reduced maintenance cost by
shortening downtime
• reduced Development cost
• Reliable & robust quality
• Security for software property
• Compatibility of software/hardware |
Graphical Operation Controller
• Controller with PLC, HMI, Push
Buttons, Lamps and Alarm
Annunciation functionality
Embedded.
• Complete Controller for
Compact Machines.
• I/O capacity : 48 I/Os (32 I/Os built-in Main Unit
+ 16 I/Os in Extension Units)
• Flexible Communication options
• Front panel 177x123 mm, Back 164x105x30 mm |
|
| HMIs |
Mitsubishi Switch Gear |
| E-1000/iX Panel Series |
|
 |
 |
E-Series
• Display size of 3.5” to 15” TFT 64 K color
• Multiple communication port RS232, RS422/485, Ethernet, Profibus, MPI & CAN
• USB host & USB device ports
• Dual drivers with data exchange
• User memory capacity upto 12 MB
• Multilingual support, Advanced recipes,
data logging & trending
• IP 66/IP20 Protection
iX Panel
• High Performance
• Four serial ports (RS-232, 422, 485)
• 4.3”, 7”, 10.4” diagonal, TFT-LCD 65T display with touch Screen
• Ethernet, MPI, CAN & USB host ports
• Powder-coated aluminum housing
• iX Software with protocols for most industrial automation controllers
• Memory : 64MB, Flash-80MB, Expansion-one SD Card
• Real time Battery-backup
• IP65/IP20 protection |
• Mitsubishi Magnetic Motor Starters and Magnetic
Contactors MS-N series
• Mitsubishi Molded Case Circuit Breakers and
Earth Leakage Circuit Breakers WS-V series
• Earth leakage circuit breaker CE and CCC
products for 3-phase applications
• Electronic Multimeasuring Instruments |
|
| Micro PLC |
Micro Modular PLC |
|
 |
NEXGENIE 1000 PLC
• Ultra-fast CPU-0.3 µsec
• Expendable - Upto 80 I/O Points
• Visual Access Window (VAW)
- Graphic LCD Display upto 64 screens &
4 System keys
• Connectivity via 2 Serial Ports
- RS232/422/485 Modbus Ready
- GSM/GPRS Connectivity
• Base Variant option with AI+HSC+24VDC Inputs
• High Speed Counters
• 6 HSC interface :
• Range up to 20 KHz
• Encoder -A, B, Z
• Powerful Computation Capability |
NEXGENIE 2000 PLUS
• Suitable from 14 I/O Points to 256 I/O Point
with RIOs
• Embedded Intelligence in Digital I/O Modules
• High Resolution I/O & Thermocouple Modules
• CANopen CPU option with Remote I/O Units
• CPU option with 2 HSC/Encoder, 2 PTO
• Multi-tasking support, Software PID function
|
|
HMIs
|
RIOs |
 |
 |
MS Series
• Touch Screen interfaces available in five different sizes from 3 to 10.4 inches with three levels of functionality - Economic, Classic and Premium
• Multi-language Support
• Animated graphics
• Multi-channel communication
• Wide range of communication drivers
• Windows based programming software wiz. SOFT Touch
|
Rix Remote I/O Series
• Compact in size : same as CST 2.5 Terminals
• Easy mounting : Panel/DIN Rail-Horizontal / Vertical
World class communication platforms supported : CANopen, DeviceNet & Modbus
• Highly reliable & cost effective
• Programmable remote I/O module : 4pt DI+4pt DO+8pt Programmable input/Output
RiX CANopen Remote I/Os Features
• Offers real time response even at low baud rate
• Network upto 8/31 remote nodes / upto 500 mtrs with Nexgenie 2000 PLC CPU Master / Nexgenie 5000 PLC CPU Master
• 64 I/Os per remote node |
|
|
ROBOTS |
NIDEC SHIMPO GEAR BOX |
 |
 |
Horizontal & Vertical, Multiple-Joints Robot
• High speed, high precision and high reliability
industrial robot
• Compact body and slim arm design, allowing
operating area to be expanded and load capacity
increased.
• The fastest in its class using high performance
motors and unique driver control technology.
• Improved flexibility for robot layout design
considerations.
• Optimal motor control tuning set automatically
based on operating position, posture, and load
conditions.
|
• Space-saving features, motor can be located at a
90 degree position from the reducer providing a
more compact footprint
• High rigidity and torque
• Adapter-bushing connection, enable a simple,
effective attachment to most servo motors
• No leakage through the seal
• Maintenance-free, no need to replace the grease
for the life of the unit. The reducer can be
positioned in any orientation |
|
| SERVOS |
CNC |
| MR JE, MR-J3, MR-J4 Series Servos |
EZMOTION-NC E70/M70 Series |
 |
 |
• High resolution encoder 4194304p/rev (22 bit)
• Absolute encoder is standard equipment
• Increased motor speed & torque
• SSCNET, High speed serial base compatible
• Improved noise immunity
• Total motion solution to satisfy simple single-axis
control to complex multi-axies control
• The large capacity main unit capacitor allows the
regenerative energy to be used effectively,
reducing energy consumption.
• 1 Axis/2Axis /3Axis Servo Amplifiers |
• High performance CNC with 64-bit CPU
• Customized initial screen, IC Card Interface
• CASSETTE MEMORY hardware
• High speed, High accuracy Machining
• Servo automatic tuning plan, Circular cutting
• Fixed cycle for turning machining
• Useful functions for combined machining
• High performance for various applications
• Easy to import external data
• Simple programming tools |
| |
|
|
Linear Servo Motor |
Direct Drive Motor |
 |
Core type LM-H3 series
Rating: 70 to 960 N |
| |
|
| |
|
 |
Core type with magnetic
attraction counter-force
LM-K2 series
Rating: 120 to 2400 N |
| |
|
| |
|
 |
Core type (natural/liquid cooling)
LM-F series
Rating: 300 to 3000 N
(natural cooling)
Rating: 600 to 6000 N
(liquid cooling) |
| |
|
| |
|
 |
Coreless type LM-U2 series
Rating: 50 to 800 N |
| |
|
| |
|
|
 |
TM-RFM series
Rating: 2 to 240 N•m |
| |
|
|
| |
|
|
|
