J. N. THERMOCONTROLS was established in 1994 at Mumbai, India with the prime objective of manufacturing / marketing of preliminary process instrumentation, specifically Pressure Gauges & Thermometers for Indian Market. As J. N. THERMOCONTROLS developed, it rapidly acquired a reputation for high quality instrumentation and has built a solid customer base by providing its client with technical knowledge and expertise. During 1998 J. N. THERMOCONTROLS began to broaden its market base by exporting its product and also included RTD's, Thermocouples and Pressure Gauge Testers to the product range. In the year 2001 Temperature Calibrator and Digital Temperature Indicator/Controllers/Scanners were introduced.. In the year 2002 Sight Flow Indicators, Level Indicators were added to the product range. In the year 2003 Flame Arresters were included to the product range. And in the year 2007 Temperature transmitters and Data loggers were included in the product range. More so we at J. N. Thermocontrols have established full test & callibration facilities tracable to national standards for most of the above mentioned products to ensure the best and seemless quality. We are also an ISO 9001:2000 organisation accredited by UKAS. J. N. THERMOCONTROLS is catering various industries like Petrochemical, Chemicals, Pulp and Paper, Plumbing, Power Generation, Food Processing, Refrigeration, Hydraulics, Bulk Drug & Pharmaceuticals and many others where stringent quality standards are maintained.
|
||||||||||||||||||||||||||
|

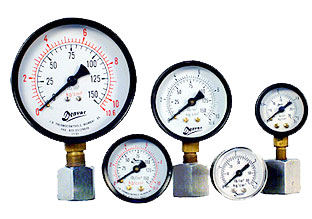

Pressure
Gauges
|
Dial Size |
40mm, 50mm, 63mm, 100mm, 150mm and 250mm |
|
Accuracy |
± 2% between 10% to 90% of the scale. 3% for rest of the scale (3% - 2% - 3%). |
|
Range |
Vaccum 760 MMHg to up to 600 kg/cm2 |
|
Over range protection |
20% or as per class II of IS 3624. |
|
Case & Benzel |
Drawn Steel Stoved enameled black or Powder coated / S.S.304 |
|
Connection |
1/8" to 3/8" B.S.P. or N.P.T. (M) |
|
Bourden & Socket |
Brass / S.S.304 |
|
Movements |
Leaded Brass |
|
Joints |
Hard Soldered / Silver Brased |
|
Max. Temperature Limit |
95°C Max. |
|
Optional Fitments |
Glycerin filling, Max. reading pointer, diaphragm units, Gauge Saver, Syphon, Gauge Cock, Dampners etc. |
Special Application Guages:
-
Oxygen Gauge : All sizes are available for oxygen service with appropriate marking. These gauges are degreased with suitable degreasing agent.
-
Acetylene Gauge : All sizes are available for acetylene with appropriate marking.
-
Ammonia Gauge : These gauges are available in 68mm / 100mm size with concentric temperature scale with standard thread connections of 1/4" N.P.T. or 3/8" B.S.P. The Bourdon and Socket are made of S.S. 304
-
Freon Gauge : These gauges are available in 68mm & 100mm with concentric temperature scale for R12 or R22 service marked in red.
|
|
||||||||||||||||||||||||
|
Dial Thermometers includes Bimetallic Instruments, Hg in Steel / Vapour Filled
Bimetallic Instruments are housed in Weatherproof IP 55 die cast Aluminium case or Pressed steel Non Weatherproof casing and are available in dial size of 25, 40, 50, 63 and 100 mm. These instruments are available in rigid stem type bottom and back connection direct mountings. The hazardous environments generally warrants use of these type of instruments.
|
|
