Bearings, Rod End Bearings, Spherical Plain Bearings, Universal Joints, Hydraulic Rod Ends, Cam Followers & Cam
Rollers, L Joints, india |
Profile :- |
We introduce ourselves as manufacturer of all types of Rod End Bearings, Spherical Bearings, GE-ES, GE-GS, GE-EC Series and L-Joint, Cam Followers and Needle Bearings under the Brand OKI for applications in Machine Tools, Textile Machineries, Packaging Machineries, Food processing Machine, Automotive and Truck, Farm Equipment, Industrial Robots, Ultra light Air Craft and Compressor Industries.
We manufacture these " OKI" Brand Rod Bearings, etc. Incorporating the latest technology, Machineries & Processors and using entirely indigenous raw materials & machineries.
We request you to provide us an opportunity to supply high quality Rod End Bearings, Spherical Bearing, L-joints to your esteemed Organizations. |
Product :- |
|
Spherical Plain Bearings |
|
OKINumberSB |
Dimensions
(mm) |
|
d |
D |
B |
C |
K |
SB
12 |
12 |
22 |
11 |
9 |
18 |
SB
15 |
15 |
26 |
13 |
11 |
22 |
SB
20 |
20 |
32 |
16 |
14 |
28 |
SB
22 |
22 |
37 |
19 |
16 |
32 |
SB
25 |
25 |
42 |
21 |
18 |
36 |
SB
30 |
30 |
50 |
27 |
23 |
45 |
SB
35 |
35 |
55 |
30 |
26 |
50 |
SB
40 |
40 |
62 |
33 |
28 |
55 |
SB
45 |
45 |
72 |
36 |
31 |
62 |
SB
50 |
50 |
80 |
42 |
36 |
72 |
SB
55 |
55 |
90 |
47 |
40 |
80 |
SB
60 |
60 |
100 |
53 |
45 |
90 |
SB
65 |
65 |
105 |
55 |
47 |
94 |
SB
70 |
70 |
110 |
58 |
50 |
100 |
SB
75 |
75 |
120 |
64 |
55 |
110 |
SB
80 |
80 |
130 |
70 |
60 |
120 |
SB
85 |
85 |
135 |
74 |
63 |
125 |
SB
90 |
90 |
140 |
76 |
65 |
130 |
SB
95 |
95 |
150 |
82 |
70 |
140 |
SB
100 |
100 |
160 |
88 |
75 |
150 |
SB
110 |
110 |
170 |
93 |
80 |
160 |
SB
115 |
115 |
180 |
98 |
85 |
165 |
SB
120 |
120 |
190 |
105 |
90 |
175 |
SB
130 |
130 |
200 |
110 |
95 |
185 |
SB
150 |
150 |
220 |
120 |
105 |
205 |
|
|

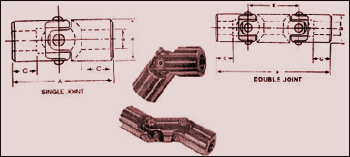

Universal Joints |
|
* A Comprehensive range of Precision Universal Joints for specific applications is available to the Indian Industry.
* From manually operated Friction bearing joints to Bracket version for medium torque / speed characteristics & Needle bearing mounted joints for high speed applications (up to 4000 rpm)
* Stainless Steel joints also available
* These Joints can be machined to accommodate Bores, Keyways, Square & Hexagonal holes, as standard
* Range covers outside diameters from 10 to 95 mm - all confirming to DIN standards. Single, double & extendable type joints are available in all 3 varieties. |
|
Hydraulic Rod Ends |
|
Series |
Bore
Diameter
Range (mm) |
Sliding
contact
Surface combination |
GIHN-K-LO |
12-320 |
Steel
/ Steel |
GIHO-K-DO |
12-100 |
Steel
/ Steel |
GIHR-DO |
20-120 |
Steel
/ Steel |
GIHR-K-DO |
20-120 |
Steel
/ Steel |
|
Characteristics:
Hydraulic rod end with internal
thread. Housings made from forged steel up to nominal
size 50, from nominal size 63 of spheroidal graphite
cast iron. Spherical plain bearing fixed in housing
by snap rings. Thread clamping by two hexagon
socket screws. |
|
Cam Followers & Cam Rollers |
|
|
|
Cam Followers |
Cam Followers |
Cam Followers & Rollers |
|
|
