VINAYAK Corporation Drawout type MCC/PCC enclosers are well designed by experience consultant/engineer having 30 years practical association in design and
development of sheet steel standard switchboards and factory built assembly, reliability, safety and rugged construction are the Distinguish features of our products. Our design meets technical requirement of all kind of industries such as Cement, Power, Steel, Chemical, Fertilizers Refinery and many process plant, and it is Flexible enough to suit varying requirement of customers, our Drawout MCC/PCC are enclosed type factory built Assembly in accordance with IS and IEC. Standard specification and to incorporate, L & T, Simens, GE, ABB, Havels and Others Switchgear and Control gear for all types of Starters and Power distributions units. |
| Product :- |
Drawout Panel
|
Salient features of MCC/PCC enclouser :
-
Fully compartmentalized design
-
Drawout trolleys / module incoming and outgoing
power and control contacts automatically,
isolate without manual disengagement in three
distinct position i.e. service, test isolate
-
All Drawout units are fully interchangeable.
-
Totally enclosed vermin and dustproof.
-
Safety shutters provide accidental contact from
vertical busbars.
-
Latest design of our Drawout encloser provide
maintenance free vertical busbars without
joint.
-
Main busbar HBB are approachable from the top.
-
Self aligning and disconnecting power and
control contact.
-
Racking screw arrangement with telescopic rails
system provide safe and sure.
-
Smooth movement like Drawout and insertion of
module.
-
New design provide top and bottom guide along
with swiveling lever for easy module withdrawal
without tools.
-
Modular construction with wide choice of
compartment size.
|
|
|
-
Standard module size minimum 225mm and upto 1500mm height in
step of 75mm.
-
Bolted design and assembly allow ease of alteration or extension
at site.
-
Hinged auxiliary door inside main compartment door permit
mounting of control accessories, such as meters, selector
switch, indicating lamps. push buttons and reset actuator.
-
Further this system improve better utilization of equipment
plate and total interchangeability of trolleys.
-
Spring loaded scraping earthing provided with first make and
last brake arrangement.
-
Maximum eight numbers auxiliary busbar center provide in top
chamber and segregation from HBB zone.
-
Large cabling space with adequate cable supports are provided in CBC.
-
Incoming and outgoing stab in type power contacts up to 800Amps.
provide very large range of feeders of different types.
-
Thousands of above specified design Drawout MCC / PCC are satisfactory
working in all type of industries in India and abroad.
|

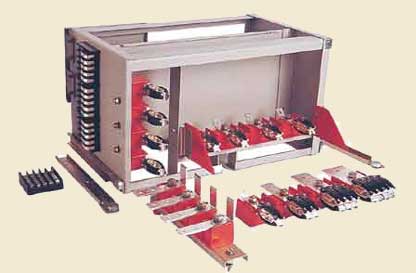

Drawout
Panel Accessories |
Drawout
Panel Accessories
Vinayak incoming and out going power contacts assembly is
of unique design, established in Indian market for last 23
years.
Adequate cross section of copper contacts with silver plating
and accurate spring pressure minimise temperature rise and milli
volt drops across the contact.
Our drawout power contacts of all rating are type tested at CPRI
for 50 kA for 1 sec. with temperature rise and milli
volt drop.
1.
Incoming & Outgoing Contact Assembly from 63A to 630A :
Outgoing
Assembly
|
Incoming
Assembly |
2.
Other Assemblies :
Sliding Rail
Economical
design of our sliding rail tempted most of the panel builders
to use in their drawout trolleys.
Cranking Mechanism
If Vinayak power contacts are used in
drawout trolleys, our screw type cranking is needed very much
to overcome the contact pressure.
Safety Shutter
A dropping shutter shrouds vertical busbar and incoming
male contacts when trolleys are removed from the compartment.
STI. LOCATOR
Service, test and isolate indicator.
SIC BLOCK - 5 WAY
20Amp 5 way secondary isolating contacts assembly.
|
|
