  ABOUT US



We would like to introduce ourselves as one of the reputed and well established company in the field of manufacturing of H.S.S. Punches, Pins, Ejector Pins.

Rigorous quality control is applied at every step of production.  This complete trace ability is the result of our fully integrated manufacturing facility from acquisition of raw materials to furnishing of our products.

Vinay - H.S.S. Precision Piercing Punches as per DIN 9861 IS 4296 are of imported high quality H.S.S. M2 ( W6, M5, V2) grade.

As hardening is the crucial matter for  H.S.S. Vinay punches undergoes very special heat treatment process, designed for ISO 9002 and QS 9000 products.

Vinay Punches are ground to micro tolerance and fine surface finish.

Vinay punches are manufactured in production method to intensive quality control during the whole manufacturing process, they can be inter changed at any time and ensure absolutely accurate trouble free working and recommended by Experts as it is precision, efficient, gives longer life, ultimately it becomes economic in hands of  consumers.

  PRODUCTS

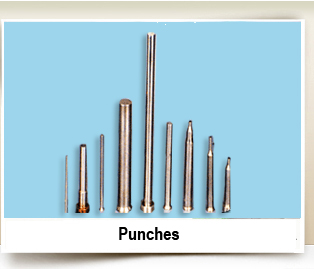

Round Punches Din 9861 IS 4296                                   Type : D

Round Punches, D Type Round Punches

d1
h6
d2
k + 0.2

d1
h6
d2
k + 0.2
0.5
- 0.007
0.9
0.2
3.1-3.4
- 0.008
4.5
0.5
0.55
1.0
3.5-3.9
5.0
0.6
1.1
4.0-4.4
5.5
0.65
1.2
4.5-4.9
6.0
0.7-0.75
1.3
5.0-5.4
6.5
0.8-0.85
1.4
0.4
5.5-5.9
7.0
0.9-0.95
1.6
6.0
8.0
1.0-1.1
1.8
0.5
6.1-6.4
- 0.009







- 0.011
8.0
1.2-1.3
2.0
6.5-7.0
9.0
1.0
1.4-1.5
2.2
7.5-8.0
10
1.6-1.7
2.5
8.5-9.0
11
1.8-1.9
2.8
9.5-10.0
12
2.0
3.0
10.5-11.0
13
2.1-2.2
3.2
11.5-12.0
14
2.3-2.5
3.2
12.5-13.0
15
2.6-2.9
4.0
13.5-14.0
16
1.5
3.0
4.5
14.5-15.0
17




15.5-16.5
18

LENGTH
:
 Standard lengths are 50, 70, 80 & 100 mm
d1
:
 the Values of diameter d1 are recommended in steps of 0.05 mm
upto 0.95 dia and in steps of 0.1 mm from 1.0 to 6.4 mm dia and
in steps of  0.5 mm from 6.5 to 16 mm diameter.
Material
:
 HSS = HIGH SPEED STEEL ( M2 Grade )
Hardness
:
 SHANK  = 64 + 2  HRC
HEAD    = 45  + 5 HRC
Note  :  Non Standard items are manufactured as per Customer's Satisfaction.
