Bod Incubator
Manufacturers / Dealers / Exporters of Bod Incubator
This Section has variety of Bod Incubator such as
Laboratory Instruments, Cooling Incubators, Water Bath Shaker, Rotary
Shaker, Bacteriological Incubator, Laboratory Equipments, BOD Incubator,
Muffle Furnace, Hot Air Oven, Laminar Air flow, Vacuum Oven, Tray Dryer,
Vertical Autoclave, Deep Freezer, Scientific Instruments, Laboratory
Oven, B. O. D. Incubator, Humidity Oven, Waterbath, Rectangular
Waterbath, Constant Temperature Bath, Digital Display Oil Bath, Cryostat
Bath, Floculator, Heating Mantle With Regulator, Hot Plate, High
Temperature Oven, Flask Shaker, Orbital Shaking Incubators, Water Bath
Incubator Shaker, Water Still, Stability Chambers, Bacteriological
Incubator, Deep Freezer, Muffle Furnace, Plant Growth Chamber, Hot
Plates, B.O.D. Incubator, Vacuum Oven, Water Still, Soxhlet Extractor
Heater, Mumbai, India Click here to find Companies making Bod Incubator
HEXATEC
INSTRUMENTS PVT. LTD.
Laboratory
Instruments, Cooling Incubators, Water Bath Shaker, Rotary Shaker,
Bacteriological Incubator, Laboratory Equipments, BOD Incubator, Muffle
Furnace, Hot Air Oven, Laminar Air flow, Vacuum Oven, Tray Dryer, Vertical
Autoclave, Deep Freezer, Scientific Instruments, Laboratory Oven, B. O. D.
Incubator, Humidity Oven, Waterbath, Rectangular Waterbath, Constant
Temperature Bath, Digital Display Oil Bath, Cryostat Bath, Floculator,
Heating Mantle With Regulator, Hot Plate, High Temperature Oven, Flask
Shaker, Orbital Shaking Incubators, Water Bath Incubator Shaker, Water
Still, Stability Chambers, Bacteriological Incubator, Deep Freezer, Muffle
Furnace, Plant Growth Chamber, Hot Plates, B.O.D. Incubator, Vacuum Oven,
Water Still, Soxhlet Extractor Heater, Mumbai, India
|

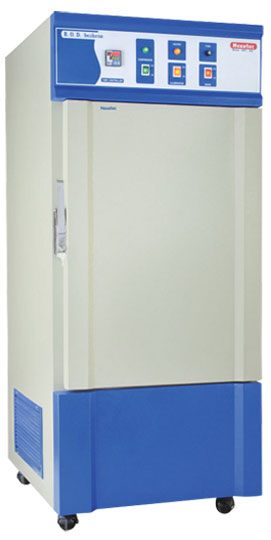

B.O.D.
Incubator - Standard Model
| Capacity |
Internal
Dimension
W X D X H [cms] |
External
Dimension
W X D X H [cms] |
Shelves |
| 3
Cu.Ft. [ 90Ltrs] |
45
x 45 x 45 |
64
x 92 x 125 |
02 |
| 4
Cu.Ft. [ 120Ltrs] |
45
x 45 x 60 |
64
x 92 x 140 |
02 |
| 6
Cu.Ft. [165 Ltrs] |
50
x 50 x 70 |
69
x 97 x 150 |
02 |
| 10
Cu.Ft. [ 280 Ltrs] |
55
x 55 x 90 |
74
x 102 x 170 |
03 |
| 12
Cu.Ft. [ 324 Ltrs] |
60
x 60 x 90 |
79
x 107 x 170 |
03 |
| 16
Cu.Ft. [ 440 Ltrs] |
60
x 60 x 125 |
79
x 107 x 205 |
04 |
| 29
Cu.Ft. [ 800 Ltrs] |
80
x 80 x 125 |
99
x 127 x 205 |
05 |
|
|
B.O.D.
Incubator - Standard Model
� Double walled in construction, gap
between the two
walls filled with high quality Polyeurethene Foam (PUF)
� Full length inner acrylic door with and outside metal
door with solid S.S. lock & key.
� Food Grade Silicon Gasket fitted on the Chamber and
Magnetic Gasket fitted on outer metal door ensures zero leakage
between the door & the Chamber.
� Provided with forced air circulation for uniform temperature
within
the chamber.
� Hermetically sealed Emerson Make Compressor unit utilizing R-134A
an eco-friendly refrigerant with electronic time relay to
safeguard
the Compressor.
� Castor wheels for easy moveability. Provided with Validation Port.
� Additional high temperature safety system to cut-off all heaters
ensuring temperature within chamber doesn�t exceed +70�C
also
incorporated in the Unit.
� Electrically operated on 230 V Ac, 50 Hz. Supply.
| TEMPERATURE
RANGE |
: +
5�c to + 60�c |
| TEMPERATURE
ACCURACY |
:
� 0.5�c |
| TEMPERATURE
UNIFORMITY |
:
� 0.5�c |
Standard Model - HIPL- 003 : |
�
Outer chamber made of Mild Steel [ 20 swg.] duly powder coated
and
inner chamber made of Stainless Steel LM-304 grade
[ 20 swg.] Mirror
finish.
� Microprocessor based AUTO-TUNING PID Digital Temperature
Indicating
Controller, Resolution 0.1c with suitable sensor.
In the event of power
failure, Non-Volatile memory allows chamber to return to
original set
point when power is restored.
� Thermostatic High Temperature Safety cut off provided.
� Rod type Shelves provided are made of Stainless Steel |
Optionals : |
� DIGITAL High
Temperature Safety cut off in lieu of Thermostatic High
Temperature Safety cut off (For STANDARD Models Only)
� Microprocessor based PROGRAMMABLE PID
Controller cum Indicator
with Printer Interface to connect Dot Matrix Printer.
Print interval
programme can print Date, Time & Temperature with
print interval
settable between 1 to 99 minutes [ without Printer ]
� Same as above but with PC software & connectivity |
|
NOTE : Use
of a Voltage Stabilizer is strongly recommended for all B.O.D.
Incubator Chambers and is a pre-condition for free service
during warranty period.
|
|
|
|
------------------------------------------------------------------------------
Click here to view more details
HEXATEC INSTRUMENTS PVT.LTD.
Tirupati Complex, Sapphire Bldg., Gala No.6,Gr.Flr.,
Opp. Professional Courier, Village - Valiv,
Sativali Rd., Vasai - 401208, Dist. Thane India
* Tel. No.:0250 2023085
/ 2023086.
* Fax : 022 2642 0084.
* E-mail :
[email protected]
|
|
