B.O.D.
Incubator - GMP Model
| Capacity |
Internal
Dimension
W X D X H [cms] |
External
Dimension
W X D X H [cms] |
Shelves |
| 3
Cu.Ft. [ 90Ltrs] |
45
x 45 x 45 |
64
x 92 x 125 |
02 |
| 4
Cu.Ft. [ 120Ltrs] |
45
x 45 x 60 |
64
x 92 x 140 |
02 |
| 6
Cu.Ft. [165 Ltrs] |
50
x 50 x 70 |
69
x 97 x 150 |
02 |
| 10
Cu.Ft. [ 280 Ltrs] |
55
x 55 x 90 |
74
x 102 x 170 |
03 |
| 12
Cu.Ft. [ 324 Ltrs] |
60
x 60 x 90 |
79
x 107 x 170 |
03 |
| 16
Cu.Ft. [ 440 Ltrs] |
60
x 60 x 125 |
79
x 107 x 205 |
04 |
| 29
Cu.Ft. [ 800 Ltrs] |
80
x 80 x 125 |
99
x 127 x 205 |
05 |
|
|

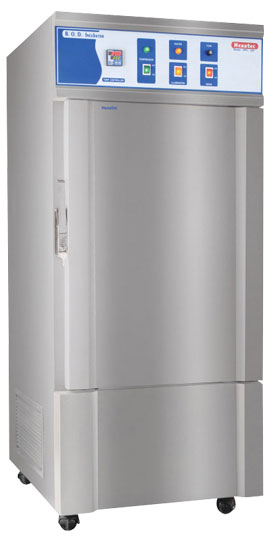

B.O.D.
Incubator - GMP Model
� Double walled in construction, gap
between the two walls filled with high
quality Polyeurethene Foam (PUF)
� Full length inner acrylic door with and outside metal door with
solid S.S.
lock & key.
� Food Grade Silicon Gasket fitted on the Chamber and Magnetic
Gasket
fitted on outer metal door ensures zero leakage between the
door & the
Chamber.
� Provided with forced air circulation for uniform temperature
within the
chamber.
� Hermetically sealed Emerson Make Compressor unit utilizing R-134A
an
eco-friendly refrigerant with electronic time relay to
safeguard the
Compressor.
� Castor wheels for easy moveability. Provided with Validation Port.
� Additional high temperature safety system to cut-off all heaters
ensuring
temperature within chamber doesn�t exceed +70�C also
incorporated in
the Unit.
� Electrically operated on 230 V Ac, 50 Hz. Supply.
| TEMPERATURE
RANGE |
: +
5�c to + 60�c |
| TEMPERATURE
ACCURACY |
:
� 0.5�c |
| TEMPERATURE
UNIFORMITY |
:
� 0.5�c |
GMP Model - HIPL- 003 A : |
� Outer
chamber made of Stainless Steel LM � 304 grade
[20 swg.] and
inner chamber made of Stainless Steel [ 20
swg.] Mirror finish.
� Microprocessor based AUTO-TUNING PID
Digital Temperature Indicating
Controller, Resolution 0.1�c with suitable sensor.
In the event of power
failure, Non-Volatile memory allows chamber to
return to original set point
when power is restored.
� DIGITAL High Temperature Safety cut off provided.
� Rod type Shelves provided are made of Stainless Steel
� Provided with Validation Documents. |
|
| Optionals
: |
� DIGITAL
High Temperature Safety cut off in lieu of Thermostatic
High
Temperature Safety cut off (For STANDARD Models
Only)
� Microprocessor based PROGRAMMABLE PID
Controller cum Indicator
with Printer Interface to connect Dot Matrix
Printer. Print interval
programme can print Date, Time & Temperature
with print interval settable
between 1 to 99 minutes [ without Printer ]
� Same as above but with PC software & connectivity |
|
|
NOTE : Use
of a Voltage Stabilizer is strongly recommended for all B.O.D.
Incubator Chambers and is a pre-condition for free service
during warranty period.
|
|
|
|
------------------------------------------------------------------------------
