Profile


Hi-Therm was founded in 1990 with a vision to be the leader in designing and manufacturing of Industrial oil and gas burners with effective heating system solutions. Over the years we have specialized in the manufacturing of various range of efficient burners & Heating-Drying Systems, advanced solution suited to different technological heating needs. The company was established with a sole objective of providing complete process heating services to all types of process industries.


It is our company policy to consider our customers as partners to whom we offer custom designed solution / tailored to suit the client exact process application which may involve combination of Expereince- Technology-Back up service.

Company has nearly more than 1500 satisfactory installation all over India along with good exports all over the continents.

Hi-Therm offers package unit, with its own quality assurance plan. The company manufactures and supplies suitable models for fuel oils like HSD/LDO/FO and gaseous fuels like LPG/Natural gas/Biogas, Boilers, Ovens, Hot Air Generators and furnaces.

  ---------------------------------------------------------------------------------------------------------------------------------------------------------

  Products



Low Air Pressure Burner [ LAP Burner ]
Low Air Pressure Burner [ LAP Burner ] Low Air Pressure Burner [ LAP Burner ]

LAP Oil Burners has been designed to operate & burn light & heavy grades of fuel oils using only low pressure air and oil. Perfect oil atomisation is obtained without the use of compressed air or high pressure oil. The heavy oil needs to be preheated to obtain the correct viscosity before being passed through the burner.  Excellent flame stability is achieved throughout the burner output range.  The construction of the burner is robust with cast iron bodies giving them durability in the high temperature operations.  The burners are supplies in various capacity ranging from 10-200 lph.
Widely Used On All type of Furnaces


  -------------------------------------------------------------------------------------------------------------------------------------------------------

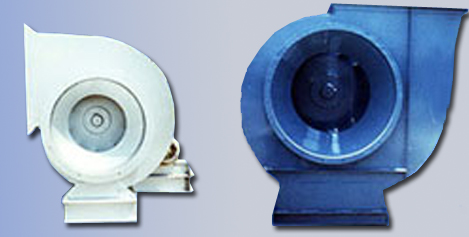

Forced Draft Blower

These are generally direct type wherein the casings are fabricated from heavy gauge mild steel sheets and structurals. The impeller is carefully balanced, statically and dynamically to obtain a perfectly vibration free running. The inlet to the blower is generally open to atmosphere but provided with safety cover. Easy removal of the impeller for maintenance purposes is felicitated by providing large inlet cover on the inlet side.
Available in various sizes and capacities.

Applications :
Industrial Furnaces, Boilers, Foundry Cupolas, Gas & Oil Burners, Hot Air Generators, Water Treatment plants, Sewage treatment plants, Chemical Processing, Agitation of liquid, Pneumatic conveying, Extraction drying
Forced Draft Blower


  -------------------------------------------------------------------------------------------------------------------------------------------------------

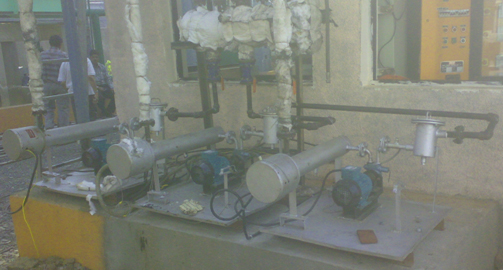

Heating Pumping Units
Heating Pumping Units

PUMPING FILTERING UNITS

PFU provides filtered and at preset pressure the light fuel oil like LDO, HSD etc to the furnaces, kilns, ovens, dryers, boilers etc. Presized and completely assembled on a skid, PFU are ready for connection to on-site fuel supply and electrical power. Depending upon process application, simplex and duplex units are available. It comprises of motorized fuel pumps, filters, pressure regulators, valves, gauges etc to form a ring main systems..

HEATING PUMPING FILTERING UNITS

HPFU are designed to supply heavy fuel oil like furnace oil, LSHS etc to the burner at a predetermined constant temperature and pressure required for efficient combustion. The principal components are immersion type electric heater, motorized rotary gear oil pump, oil filters, pressure regulators, etc duly interpiped for the operation. All the components are neatly placed on a common base tray making it compact and co-ordinated space saving design. Available in simplex and duplex models from 1 kw to 60 kw heating capacity.

  -------------------------------------------------------------------------------------------------------------------------------------------------------



Non IBR Steam / Hot Water Boiler

These are Instant Steaming Fully Automatic Coil Type Boilers and consists of Double Helical Coil creating various flue passes to maximize heat transfer and increase efficiency. The Feed Water is pumped in the helical coil & the Burner is fired vertically downward in the chamber made from the Coil. After complete Combustion, the gases pass through suitably designed passage in between two coils & then through third pass of coil & inner shell. Heat is recovered by Air passing through inner
& outer shells, thus providing preheated air for combustion improving efficiency. Aluminium radiator placed between the shells eliminates the heat loss to atmosphere, thus eliminating the external insulation.An econmomiser – feed water heating through flue gases is also a part of supply to enhance the thermal efficiency.
The boiler has proven HIT Series Fully Automatic Pressure jet burners / Gas burners with the control panel. Boilers are mounted on skid platform, prewired and assembled, ready to install. The unit shall be commissioned, immediately after Fuel line & Power supply is connected to the system.

The boiler can be offered with various type of fuels like Furnace oil/ LDO / HSD / LPG Gas /
Natural gas / Biogas / Dual Fuel – Oil cum Gas.

Boiler Models available in the steam generating capacity of 100- 800 kg/hr.
  -------------------------------------------------------------------------------------------------------------------------------------------------------
