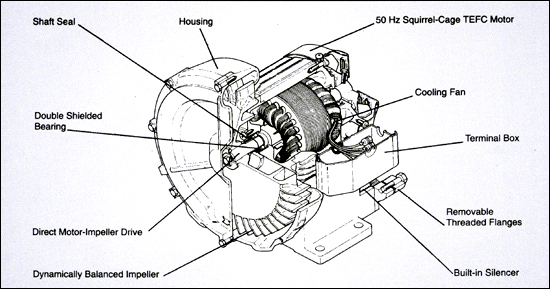

Features
* Suction and discharge Silencers	Reduces noise levels to below OSHA Standards. Make it more comfortable for employees working near the blowers.
* Die cast impeller	Promotes smoother air flow and higher volumetric efficiency.
* Dynamically balanced impeller	Smoother operation. Allows vibration-free installation in OEM equipment.
* Double shielded shaft bearing	Better grease retention. Increased reliability.
* Dust - proof shaft seal	Protects bearing from contaminants for longer life
* Motor shaft - mounted impeller	Eliminates the need for couplings, belt or gears. Nothing to break or wear out.
* 50 Hz. motors, wide voltage range	Minimizes OEM inventory requirements.
* Improved cooling fan design	Cools the motor and blower. Quieter running and more efficient.
* Thermal protector built -in	Protects the motor from overheating for greater reliability.
* Compact design	Space saving design makes it easer for OEM's to incorporate the blower into their equipment.
* Removable threaded flanges	Easily replacement in OEM equipment.

Model	Capacity	Pressure	Vacuum	Motor	WT.
	M3/HR	MBAR	MBAR	H.P.lKW	KG
SR - 25-2/2	50	60	50	0.25/0.18	14
SR - 25-2/1	25	120	100	--	--
SR -50-2/2	90	95	90	0.5/0.37	17
SR -50-2/1	45	130	125	--	--
SR -75-2/2	120	125	115	0.75/0.56	23
SR -75-2/1	75	175	165	--	--
SR -100-2/2	200	140	125	1/0.74	25
SR -100-2/1	100	225	200	--	--
SR -150;.2/2	250	160	140	1.5/1.12	28
SR -150-2/1	125	240	220	--	--
SR -200-2/2	300	200	160	2/1.5	35
SR -200-2/1	150	300	300	--	--
SR -250-2/2	400	225	180	3/2.20	45
SR -250-2/1	200	380	320	--	--
SR -300-2/2	525	250	230	5/3.5	55
SR -300-2/1	290	450	400	--	--
SR -350-2/2 .	650	275	260	7.5/5.57	65
SR -350-2/1	325	580	480	--	--
SR -400-2/2	850	350	300	10/7.50	90
SR -400-2/1	435	690	540	--	--
SR -450-2/2	1150	400	360	15/11.25	120
SR -450-2/1	500	800	650	--	--
SR -500-2/2	2400	500	400	20/14.8	135
SR -500-2/1	1600	900	750	--	--

Principle of Operation

This turbine blower is a non-positive displacement, high volume, pressure, blower that can operate as either a compressor or a vacuum pump. It is also know as other names such as regenerative blower, vortex blower and side channel blower. All of the names describe the basic principle of operation of the blower.

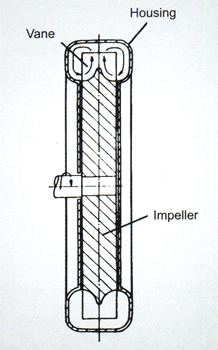

The blower consist of an impeller mounted directly on a motor shaft and is rotated at a high speed of about 3000 R.P.M. On the periphery of the impeller are a large number of radial blades. The impeller is positioned between 2 end plates with the blades located with a channel on either side.

The turbine blower is, ineffective, a multi stage compressor with each regeneration of the air becoming another "Stage".

The basic construction of a turbine blower means that the only moving part is the impeller. Nothing touches except bearings. The method of compression means that there is no requirement for lubrication in the compression chamber. The discharge air is oil-less. No oil aerosols are present in the discharge air; nor carbon dust generated by sliding wanes. The blowers should be mounted vertically or horizontally.
