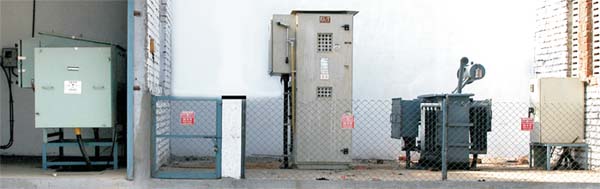

The compact sub station is designed, keeping in mind thepersonnel safety, considering H.T.equipment located in populated areas. It is designed in accordance with IEC-61330 standards. It is pre-fabricatedsecondary sub station containing, distribution transformer, medium voltage switch gear, low voltage switch board, connections and associated equipments in a compact unit. The doors are screwed with double point closing device with flush mounted handles for padloadings and the completeunit is designed for outdoor / indoor type as per customers specific requirement. all components are housed an enclosure, which protects the equipment from environment hazards and unauthorised access. The electrical equipment is cooled by natural ventilation through openings in the sub station.
the standard degree of protection for CSS is IP 23 D is in accordance with IEC 60529 Standards. If required CSS can be supplied with doors that comply with IP 54 standards. by including gaskets and excluding door ventilation. openings.

The compact type sub stations are usedfor feeding power by acquiring minimum space, can be mounted on Roof Top / Basement of the premises or portable type
forconstruction sites, They are easy to install, usually mounted on skid frame or channels with lifting hooks or portable trolleys as per customer demand.
TheCSS is computerised with suitable medium voltage, lowvoltage sections and transformer section with seperate doors for each compartment.

FEATURES-----
Standard design / low weight / small volume / transformer room accessable both side shutters / provisional cable entry / 100% non porous powder coating.

We offer high quality 11 / 22 / 33 / KV, CSS with customised variations.
Wide modular product range enhanced safety several options and extensive flexibility appealing asthetics.
Reduced overall pland and operating cost.
