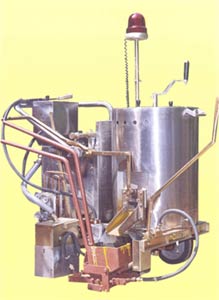

(1) HOT THERMOPLASTIC
OPERATOR PROPELLED ROAD MARKING MACHINE -
Model : RM3WSS
 Designed for fast, efficient heating of thermoplastic material & application (stainless steel tank 75kg. Capa.) Provides direct heating of thermoplastic material in applicator machine & provides easy means for swapping out
application on the spot.
Unique self wheel lock on rear wheel allows perfect straight line.
Mercury Temperature gauge for Paint. |
|
Screed box hook mechanism allows clean cut & sharp smooth
strips, provided thickness adjustment provision on spot innovation
makes for easier use & less parts to maintain.
Positive dispensing of Glass Bead Spraying Mechanism automatically
activates with the turn of machine with Glass bead flow
adjustment providing the
operator less hassle.
Heating: LPG supply to burner for tank, screed box 2 burners & hand torch.
Safety traffic revolving light with rechargeable battery
The machine finish (Stainless Steel) provides longevity with less maintenance.
Thus applies a complete line of thermoplastic materials, with minimum labour and
fewer efforts. Technical Details
Thermoplastic Tank Capacity : 75 kg. Capa Removable / Interchangeable Stainless Steel Tank & Body
Glass Bead Container : 10 Kg Capa. Rotor Type positive dispensing of Bead Spraying Mechanism
Size L X W X H : 1200 mm x 600 mm x 900 mm
Weight : 115 Kg.
Wheels Front / Rear : 3 Rubber Wheels 2x Dia 250/1 x Dia 150
Heating System : LPG Supply to burners
Screed Box : For Marking
Battery : 12 W Battery with interchangeable system, Safety Traffic Lamp |
|
---------------------------------------------------------------------------------------------------------------------------- |
|
---------------------------------------------------------------------------------------------------------------------------- |
|
Equipment is fitted with Diesel Engine to provide continuous stirring, which provides homogeneous thermoplastic molten. The system is heated by LPG, through heavy duty, high pressure radial burners which are of high standard available in heating industry.

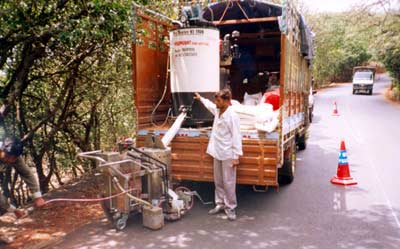

Oil Jacketed Thermoplastic
Preheaters, having a capacity of 500 Kgs. As Single Unit are manufactured to a very high standard, to withstand continuous workload demanded by Road Marking Contractors. It can be operated continuously for 8-10 hours.
This will act as feeder vehicle to a hand propelled or automatic applicator to produce 500 sq.
Mtrs. Of markings a day. All pipe works valves and regulators are easily accessible. Hand torch fitted for trouble free operation. Equipment is skid mounted, can be transported in a mini truck.
|
Technical Details
Dimension : L 1500 x W 1200 x H 1600 mm
Weight : Dry Weight 1100 Kgs.
Power Transmission : Reduction Gear
Engine : Water Cooled Diesel Engine
Burner : 5 Nos. High Pressure Radial Burners |
|
---------------------------------------------------------------------------------------------------------------------------- |
|
---------------------------------------------------------------------------------------------------------------------------- |
| |
