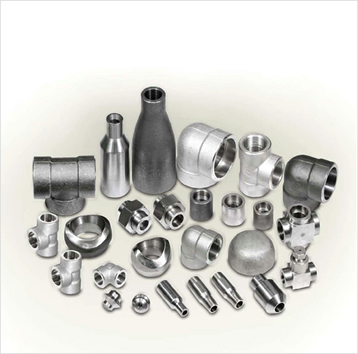

| Material Specification |
: |
|
A182F304, F304L, F316, F316L, F321, F22, F11, A350 Gr LF2, Monel. A403 WP304, WP304L, WP316, WP316L, WP321, A105 A234 Gr WPB |
| Dimensional Standards |
: |
|
ANSI-B16.11, ANSI-B16.9 |
| |
|
|
|
| Type of End Connections |
: |
|
But-Weld, Socket Weld, Threaded. |
| |
|
|
|
| Sizes & Pressure Ratings |
: |
|
For Socket-Weld & Threaded Type : 1/2" 3000 Lbs to 2" 6000 Lbs
For Butt-Weld Type : 1/2" Sch 10 to 12" Sch 160 |
|
| |
|
|
| |
|
|

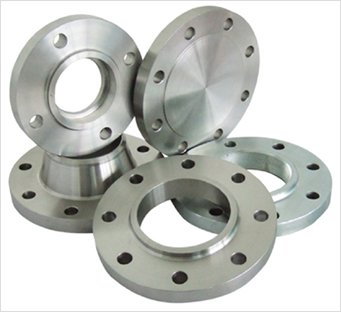

Material Specification |
|
|
A182F304, F304L, F316, F316L, F321, F22, F11, AISI 304, 304L, 316, 316L, 321, A350 Gr LF2, Monel. A105, A515 Gr 60/70, A516 Gr 60/70, IS-2062, IS-2002, A285 Gr C. |
Dimensional Standards |
: |
|
ANSI, AWWA, MSSP, DIN, BS, IS, UNI, JIS, API |
Type of Flange Facing |
: |
|
Raised Face (R.F) Serrated, RF Smooth, Flat Face (FF), Ring Joint, Tongue & Groove |
Sizes & Pressure Ratings |
: |
|
For 'Slip On & Blind Type : 1/2" (15 NB) to 24" (600NB) in all Pressure Ratings.
For Socket-Weld & Threaded Type : 1/2" (15 NB) to 3" (80NB) in all Pressure Ratings.
For Weld-Neck Type : 1/2" (15 NB) to 2" (50NB) Pressure Rating 150 Lbs to 2500 Lbs |
|
|
|
| |
3" (80 NB) to 8" (200NB) Pressure Rating 150 Lbs to 300 Lbs |
|
|
| |
Tube Fittings |
|
| |
|
|
| Material Specification |
|
|
Bar Stock (ASTM A-479) or Forgings (ASTM A-182)
Grade : SS304 / 304L, SS316 / 316L, SS321 |
| Sizes |
: |
|
For All Fittings |
: |
From 1/8" Tube O.D to 1" Tube O.D
From 3 mm Tube O.D to 25 mm Tube O.D |
| |
|
|
|
|
|
| |
|
|
Threading |
: |
NPT, BSP, ISO in Male & Female Type |
| |
|
|
|
|
|
| |
|
|
Sockets |
: |
As per Tube O.D Dimensions |
| |
|
|
|
|
|
| Pressure Ratings |
: |
|
3000 Lbs to 6000 Lbs |
|
| |
| |
|
