Hand Held Probes & Thermocouples
|
|
Master probe handle probes into the master probe handle. The handle has a mini cack at one end & a coiled cable with mini plug on the other individual probes may be connected to allow easy reach to the process.
Immersion probe : The general purpose probe can be used in liquids & gases.
Penetration probe : Used for penetrating meat,plastic, rubber,asphatt, or other semi soft materials. includes mini plug.
Surface probe : For flat or semi flat surfaces of metal, paper or plastic. Small gauge spring contoured tip allows fast response
Air duct probe : Measures temperature in ducts for air or compatible gases, environmental chambers, ovens, rooms, etc, perforated shield has good air flow & prevents heating by radiation.
|
Exposed junction probe : Small gauge tip allows high sensitivity & quick response.the thermocouple junction is exposed for readings in air or compatible gases.
Needle probe : Small diameter penetrating probe gives fast response in soft materials & liquids. made with mineral insulated sheath for extra durability.
Bare Tip Prob : This prob consists of 10 feet of 24 swg wire with fibreglass braided cable & a bare wired junction |
|
----------------------------------------------------------------------------------------------------------------------------------------------------- |

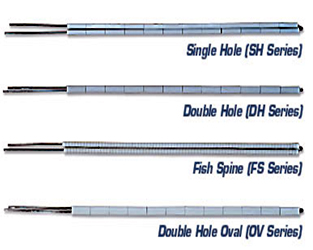

Beaded Wire & Insulators
|
|
A thermocouple element is the heart of the thermocouple assemblies. prudent selection of swg size, length & type of insulation is essential for optimum performance & economy.
We assist you in making best selection based on experience & the technical data presented here.
Thermocouple bare wire : Wire swgs are from 8 swg to 36 swg.
Types of wires : K,J,R,S,T,B,N.E,W.W3,W5.
BEADS : Beads of 2 quality.
|
1] 610 pythagoras 610 [contains 60% allumina.] continious operating temp.1400°c
2] ker 710 or c-799 recrystallize. [ contains 99.7% allumina.] continious operating temp.1700°c
3] Bores : simplex-duplex-triplex. [2-4-6 bores] dias available from 2.5 mm to 13.5 mm dia |
|
----------------------------------------------------------------------------------------------------------------------------------------------------- |
Industrial Panel
|
|
• |
Fully compartmentalized design |
• |
Drawot trolleys/module incoming and outgoing power and control contacts automatically, isolate without manual disengagement in three distinct position i.e. service, test isolate |
• |
All Drawout units are fully interchangeable. |
• |
Totally enclosed vermin and dustproof. |
• |
Safety shutters provide accidental contact from vertical busbars.
|
• |
Latest design of our Drawout encloser provide mainteneance free vertical busbars without joint.
|
• |
Main busbar HBB are approachable from the top.
|
|
• |
Self aligning and disconnecting power and control contact. |
• |
Racking screw arrangement with telescopic rails system provide safe and sure. |
• |
Smooth movement like Drawout and insertion of module.
|
• |
New design provide top and bottom guide along with swiveling lever for easy module withdrawal without tools.
|
• |
Modular construction with wide choice of compartment size.
|
• |
Standard module size minimum 225mm and upto 1500mm height in step of 75mm.
|
• |
Bolted design and assembly allow ease of alteration or extension at site.
|
• |
Hinged auxiLLary door inside main compartment door permit mounting of control acsessories, such as meters, selector switch, indicating lamps.push buttons and reset actuator. |
• |
Further this system improve better utilization of equipment plate and total interchangebiLity of trolleys. |
• |
Spring loaded scraping earthing provided with first make and last brake arrangement.
|
|
Maximum eight numbers auxiliary busbar center provide in top chamber and segregration from HBB zone. |
• |
Large cabling space with adequate cable supports are provided in CBC |
• |
Incoming and outgoing stab in type power contacts up to 800Amps. provide very large range of feeders of different types.
|
• |
Thousands of above specified design Drawout MCC/PCC are satisfactory working in all type of industries in India and abroad.
|
|
|
----------------------------------------------------------------------------------------------------------------------------------------------------- |
Infrared Thermometer
|
|
• Built-In Distance Measuring Available Soon!
• Field Installable Distance Measuring Available Now!
• Models Available with Temperature Ranges to 870°C (1600°F)
• Emissivity Adjustable from 0.1 to 1.00 in 0.01 steps
• Backlit LCD Display
• Dual Digital Display Indicates Current with Min, Max, Average, or Difference • Temperatures
• °C/°F Selectable
• 1 mV/Degree Analog Output Standard
• RS-232 Output Models Include FREE Data Logging Software
• Audible and Visible Alarms
• Integral Tripod Mount
• Type K T/C Input Available
• Temperature Data Storage Available
• Electronic Trigger Lock
• Last Temperature Recall
All Models Include Built-In Laser Sighting, Display and Lens Protective Bumpers, Wrist Strap, Soft Carrying Case, 4 Long Life Lithium Batteries, and User's Manual with Emissivity Reference Chart |
|
| ----------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
|
| |
