High Pressure Tube & Pipes, Copper Tubes, Thermowell, PU Fittings, Instant Push Type Fittings, Mumbai, India
Catering to the rising need of precision engineered and durable industrial fitting products, we took up the challenge towards designing, developing and fabricating cost effective and innovative products as per the exacting requirements of our clients. With time and added experience, we developed our expertise in manufacturing and exporting a premium range of products like international standard 2-3-5 way Manifold Valve, Ball valve, Needle valve, Condensate pot, Air header, Tube fitting, High Pressure Pipe Fitting, Monoflanges, Slimline Sampling valves, Our experience and expertise in the production processes and involved technologies has grown over the years with the growth of its clients. Our team of experts in the engineering, technical and allied departments ensures that the products coming out of the production units comply with international standards. Manufactured under the supervision of the professionals, our innovative range of industrial fitting. Mission To offer premium range of standard & standard modified products that meet the exacting requirements of our clients. .


Tube & Pipes ..........

Tube & Pipes


All sizes of pipes & tubes in S.S., C.S., A.S., Monel etc. Material grades complying with various ASTM specs as A269, A213, A312, A 106, A335 etc. [seamless and welded)
Insrumentation tubes are fully annealed, soft quality tubing available in straight length & in coil form as per ASTM A269 & A213.

Preferred hardness is R.B. 80-90.

--------------------------------------------------------------------------------------------------------------------------

Copper Tubes -------------

Copper Tubes

As per ASTM / BSS specification for PVC coated & Bare Copper tubings.
Type - Soft, Annealed, Seamless. copper tube as per ASTM B - 68/75 & BS- 2871 Part 2.

Size - 6mm OD X 4mm ID, 1/4" OD X 22 swg to 16 swg, 3/8",1/2" etc.
PVC coating - 1 mm & 0.5mm thick.

Colour - Black & Blue [or any other colour for quantity order)

Length -15mtr., 50mtr., 75mtr., 100mtr., and above in one continuous length.

Chemical Composition - Copper - 99.92%
Phosphorous - 0.022% [varies 0.015 to 0.040)
Hydrostatic - 25kg/cm2

Testing - Ball & Bubble test - 200 psi.

--------------------------------------------------------------------------------------------------------------------------

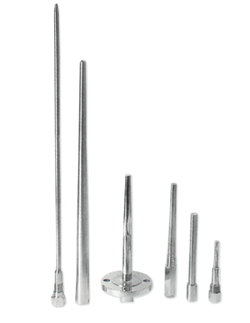

Thermowell ----------------
Thermowell


"Virgin" A wide range of Thermowells for almost all temprature sensing requirement in high & low temprature, high pressure, high velocity, corrosive & abrasive media can be offered.
Available in - Standard type & Customise configuration, Bar Stock Drilled / Fabricated, Flanged, Screwed, weld on weld type.
Type - Straight, Taper [Vertical)

MOC - Brass, C.S., S.S. 304/ 316, Alloy Steel.

Connection - Screwed [BSP / NPT) S/W, Flange.
Finnishing - Mirror Finish with high precision work & strict with quality super vision.

--------------------------------------------------------------------------------------------------------------------------

PU Fittings & Instant Push Type Fittings ---------------

PU Fittings & Instant Push Type Fittings

To cope up with new generation of instant fittings, VIRGIN has developed PU tube fittings & collet type push fittings in Brass & Aluminium for soft tubes. As no ferrule or olives are required, these fittings can be used 'n' number of times after ever make and break without using spanner.

Sizes :  4,6,8,10, 12mm

--------------------------------------------------------------------------------------------------------------------------
