Bearings as per DIN 31694 / DIN31693 |
| |
 |
| |

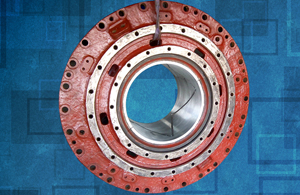

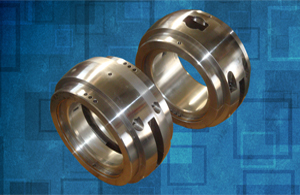

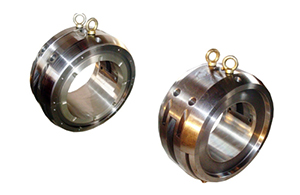

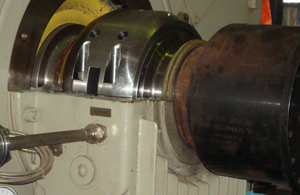

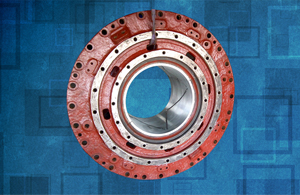

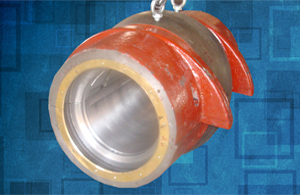

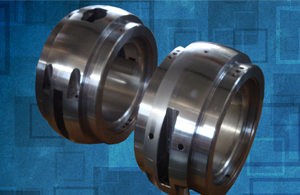

| Plain bearings are manufactured by Mangal Industry in accordance with DIN 31693 & DIN 31694 using IS 25 GR.84/90 white metal. They feature a spherical outside diameter with various options for locating ( with thrust faces) and non locating ( without thrust faces). These are very common bearings used in many electrical and turbo machinery applications. They are fully interchangeable spares for use in ISO/DIN standards pedestals/flanges. Thrust faces are either plain or tilting thrust pads. |
| |
| Size |
Bore |
Width |
Outside Diameter |
| 9 |
80 |
60 |
190 |
| 90 |
| 100 |
| 11 |
100 |
80 |
212 |
| 110 |
| 125 |
| 14 |
125 |
105 |
280 |
| 140 |
| 160 |
| 180 |
| 18 |
160 |
135 |
335 |
| 180 |
| 200 |
| 225 |
| 22 |
200 |
170 |
425 |
| 225 |
| 250 |
| 280 |
| 300 |
| 28 |
250 |
215 |
530 |
| 280 |
| 300 |
| 315 |
| 335 |
| 355 |
| 35 |
300 |
260 |
630 |
| 315 |
| 335 |
| 355 |
| 375 |
| 400 |
|
| |
Customer Defined Bearings
|
| |

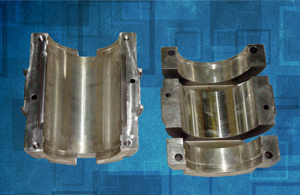

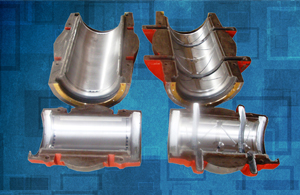

Bearings and Bearing Assemblies as per Customers' Drawings & Specification can be made in small or large batch quantities. The quality assurance programme ensures that right quality Bearings are delivered to the Customers.

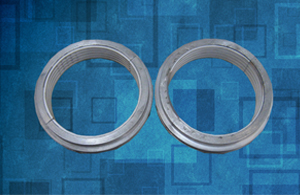

The customer defined Bearings include Thrust Pads, Journal pads, Profiled Bearings etc. Apart from Bearings, other bearing related components, such as Labyrinth Seals, Oil Rings, Oil Splash Rings and other Components can also be supplied. |
| |
| |
Repair & Retrofit Services
|
- Replacement for DIN type bearings & components such as labyrinth seals, oil rings, oil splash rings .
- White metal re-lining on shells, guide pads & thrust pads.
- Solving site problems related to white metal bearings and providing CAPA reports.
- Performance improvement solutions for existing bearing configurations.
- Re-engineering of components when th market place doesn't offer any suitable solutions,. This may be because of OEM is no longer in business or part is obsolete. Lead time for new parts exceeds the available time to source, performance of the bearing is below expectations and failure reoccurs.
|
| |
| |
|
