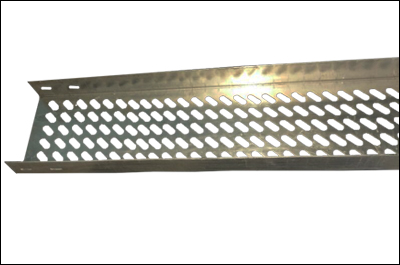

Cable Trays

Cable tray is being used for support to electrical wiring in any type of building, Industries or any construction for power supply. It is generaly Being used for open wiring, where wires are in quantity and require air Circulation. By using cable tray it is very easy to make cable management in Industries or in Commercial Construction.

It is good to laying cable in cable tray , instead of pooling through pipe. In cable Tray wires can be seperated properly and air circulation is also there. any body Can manage properly wiring through cable tray. Is easy to extend wiring at the Time of future expansion also. If any wiring fault is there, it is easy to find out, if Wiring is done through cable tray.

Generally cable tray are being used in metal form like ms hot dip galvanized, pre Galvanized cable tray, ms painted cable tray, ms powder coated, aluminium cable Tray, stainless steel cable tray etc. 90 % industries are using hot dip galvanized Cable tray, as hot dip galvanized cable tray life is much more then, paintec cable Tray or powder coated cable tray.

Standard Specifications :

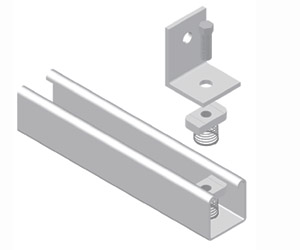

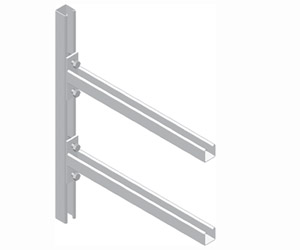

Our Channel Sections are available in 3 metre or 6 metre lengths as standard. Channels are manufactured from mild Steel hot-dipped galvanized or other finishes. Channels are produced from steel strip with a nominal thickness of 2.5mm. The weight of the channel is 3kg/m.

1. Framing Members : Channels are accurately and carefully cold formed to size from low carbon strip steel. The channel has a continous slot with inturned clamping ridges.

2. Fittings : The fittings, unless noted otherwise, are punch press formed from low carbon steel plates or strip.

3. Spring Nuts : Produced from steel bars and after manufacturing, are case-hardened. Two serrated grooves in the top of the nut engage the inturned edges of the channel.

4. Masses and Dimensions : Masses given for all materials are approximate shipping weight. All Dimensions subject to commercials tolerance variations.

5. Finishes : Plain channel - has oiled surface straight off rolling mill.
Fittings - commercial bar stock material. Hot-dipped galvanised - coatings are applied in accordance to Bs 729 / IS - 2629.
Special coating - Other commercially availabe finishes can be supplied on request.

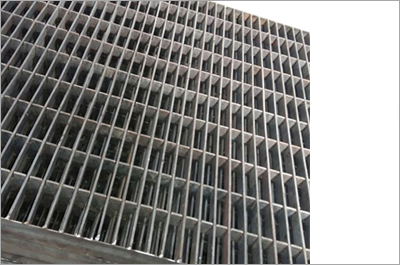

Grating can be made from any Material, Grating it self is being used to Cover hole, Cover space between 2 elements, to creat grip, for air circulation, to make Transperant, to fill gape with some certain sizes. Grating can be made in any size in any Shape, in any thickness. Metal grating can be made from steel rod, Steel flats, Steel Pipe, Steel bar and in cast iron also. General use of grating is at to make platform, to make Walkway, to cover drainge, to cover holes, to cover tanks where opening is require, to make stair steps, for grill, for partitions, any so many more. For industrial use manly
Metal Grating and FRP Gratings are being used. Again in Metal Grating, Grating can be made manually and by Machine also
( Electro‐forged Grating ). Metal Grating can be Red Oxide Painted, Color Painted, in MS only, Hot DIP Galvanized etc. 90% Metal Grating is being used Hot GIP Galvanized only.

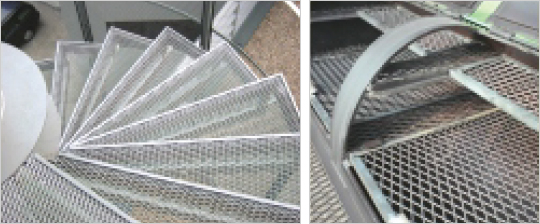

A combination of numbers, letters, and abbreviations permitting proper specifications of dimension, Gauge, Style, and Weight. In expanded metal products, The first number designates nominal dimension, Short way of design. The second number completes the designation and may specify the gauge of metal, Weight per 100 square feet, or may have some other significance. Grating products are designated by weight of finished product per square foot.

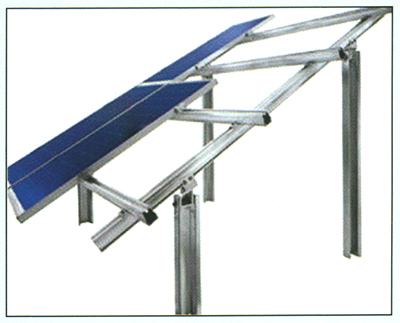

We offer wide range of products and services for solar structures for Photovoltaic (PV) Roll forming of solar structure sections thickness ranging from 1.25mm thick to 6.0mm thick. Manufacture of sections with post forming opertaions like punching, slotting & Nothing. Fabrication of solar mounting structures as per customers requirements. Hot dip galvanizing of solar mounting structures as per customers requirements.

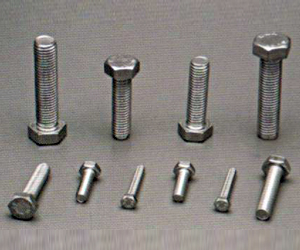

Stainless Steel Bolts & Nuts for water Projects and Water Reservoirs : Rollfast manufacturers the complete range of stainlbess steel bolting in SS 202, SS 316 & SS 304 used in projects related to water treament, Sewage water Treatment Plants desalination plants, water equipment, for flange joints & pumps. SS 202, SS 316, SS 304 grade nuts and Bolts for the ever growing demands for water storage resevairs and projects in middle east. These bolts and nuts are used for joining Pipeless using pumps and valves.
