| About Us .... |
| |
Established in the year 1985, we, “Parimal Enterprise” are one of the most trusted traders and suppliers engaged in offering a versatile range of of Energy Meters and Electronic Equipment. These equipment are widely appreciated in the market for reliable operation and low maintenance cost. Our Energy Meters and Electronic Equipment are procured from Secure Meters Ltd. and are offered at cost effective rates. In Assam and Delhi, we have a state-of-the-infrastructure spread in a vast area of 50,000 sq. Ft. We have required facilities , which help us in fulfilling the market demands.
Moreover, we also conduct different types of market research activities, which enable us to understand the changing market dynamics. Presently, we cater to the requirements of many reputed clients from different sectors. We also ensure that our products are delivered to the customers within the stipulated time-frame. Our huge distribution network helps us in keeping the delivery commitment.
We are supported by our mentor “Mr. Ajey Kulkarni”, who is a man with extensive industry experience. He has helped us source quality products and deliver these to the customers. All our activities are performed under his guidance. |
| |
|
|

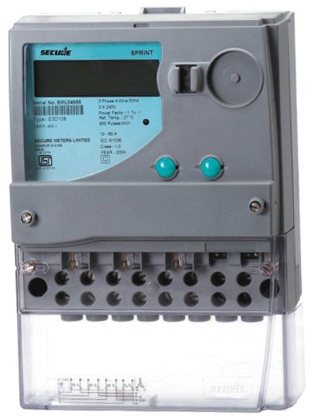

Meter ( Sprint Dual Register ) |
| |
|
| |
 |
| |
|
| |
We are instrumental in offering Meters (Sprint Dual Register), which fulfill the requirements of dual source energy metering. For recording energy from mains and DG supply, these provide two separate registers for recording energy. Load control solution is provided by Sprint Dual Register, which enables a consumer to disconnect the system if load crosses a certain limit.
|
| |
|
| |
|
|
| |
|
|

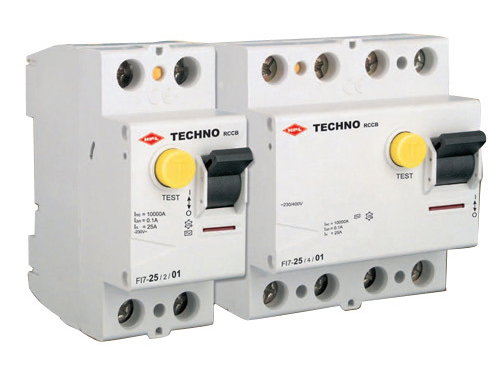

Residual Current Circuit
Breaker ( Model FI7 ) |
| |
|
| |
 |
| |
|
| |
Technical Specification :
• Residual Current Circuit Breaker - RCCB
• Shape compatible with and suitable for standard busbar connection to other devices
• Twin-purpose terminal (lift/open-mouthed) above and below
• Busbar positioning optionally line or load
• Free terminal space despite installed busbar
• Contact position indicator red - green (FI7-4-pole)
• Suitable for being used with standard fluorescent tubes with or without electrical ballast (typically up to 20 units per phase conductor)
• The device functions irrespective of the position of installation
• Types with 80 A permissible short-circuit back-up fuse: Take into account overload protection
• Tripping is line voltage-independent. Consequently. the RCCB is suitable for "fault current/residual current protection" and "additional protection" within the the meaning of the applicable installation rules
• Mains connection at either side
• The 4-pole device can also be used for 3-pole connection. For this purpose use terminals
1-2, 3-4, and 5-6.
• The 4-pole device can also be used for 2-pole connection. For this purpose use
terminals N-N and 5-6.
• Pressing the test key "T' serves the only purpose of function testing the residual current
circuit breaker (RCCB). This test does not make earthing resistance measurement (RE), or
proper checking of the earth conductor condition redundant, which must be performed
separately.
• Tripping is line voltage-independent. Consequently. the RCCB is suitable for "fault current/residual current protection" and "additional protection" within the the meaning of the applicable installation rules
• Mains connection at either side
• The 4-pole device can also be used for 3-pole connection. For this purpose use terminals
1-2, 3-4, and 5-6.
• The 4-pole device can also be used for 2-pole connection. For this purpose use
terminals N-N and 5-6.
• Pressing the test key "T' serves the only purpose of function testing the residual current circuit breaker (RCCB). This test does not make earthing resistance measurement (RE), or proper checking of the earth conductor condition redundant, which must be performed separately.
|
| |
|
| |
|
|
| |
|
|
Backlite Fuse Holders ( HP ) |
| |
|
| |
 |
| |
|
| |
HPL offers a versatile range of Fuse Holders consisting of Fuse carrier & Fuse bases moulded out of high grade flame retardant, non-hygroscopic phenolic moulding powder conforming to IS : 1300 / BS : 771 with a high gloss black finish. All the current carrying nonferrous parts are tin / silver plated to ensure better conductivity & to prevent oxidation while all ferrous parts are zinc plated to avoid rusting. Fuse Holders are available in various ratings i.e. 20A, 32A, 63A & 125A with front & busbar
connection.20A fuse holders are also available in back connection.
Very simple in construction with minimum number of components. Carrier contacts and Base contacts are mounted using locating ridges formed on the mouldings, assuring perfect alignment. 20A fuse carriers have a single piece phosphor bronze clip, while all other type fuse carriers have a single piece press brass spin riveted contact. The base is also made up to a single piece extruded brass tinned contact having adequate size of cable hole to accommodate aluminium cable. Spring pressure of clips in 32A, 63A & 125A, fuse holders and a special high pressure metal backing stirrup in fuse holders provide lasting contact surface. The stirrups are not required to carry current.
Stringent quality control during production ensures excellent end product. A well equipped test laboratory as per IS : 13703 / IEC 269 is the key to quality adherance. 20A, 32A, 63A & 125A rated fuse holders are ISI marked as per IS : 13703 part II / sec. 1. The ISI mark indicates our total commitment to quality.
|
| |
|
| |
|
|
| |
|
|

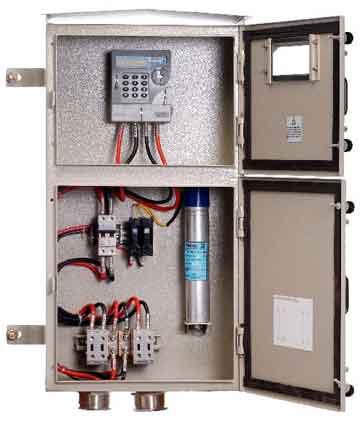

Load Management ( Lightchek 1P ) |
| |
|
| |
 |
| |
|
| |
Our organization provides Load Management (Lightchek 1P), which is designed by our associates using advanced micro-controller technology. Power quality can be monitored by displays power factor. Our Load Management system can be easily installed and requires very less maintenance. We also offer this system to the clients in different specifications.
Features and benefits :
• Switch status on display
• Remote control of street lights using SMS (optional)
• External power factor correction capacitors (optional)
• Astronomical timing control as per sunset and sunrise timing
• Flexible time selection from predefined tables
• Overcurrent tripping
• MCCB for protection
• Display of voltage, current and instantaneous demand
• Password protected configuration settings
• Previous day maximum demand recording
• Meter accuracy class -1.0
|
| |
|
| |
|
|
|
