"UNIK" Gauges are made out of Tungsten based Oil-Hardened Non  Shrinking Steel (OHNS) duly tested for uniform microstructure and  hardness.

 Our Gauges are manufactured on imported Grinding machines by  highly skilled personnel and undergo thorough inspection in our  fully equipped temperature controlled standards room.

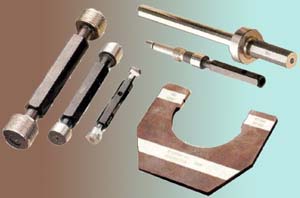

 THREAD & PLAIN PLUG GAUGES
 Thread Plug Gauges :- (Parallel & Taper)
 Range :- 2 to 200 mm Dia. for Parallel Threads 1:16 Taper &
 Dia. 1/8 inch to 8 inch for Taper Threads.
 We make TPG as per IS, BS, DIN & American Standards.

 Range Type Specification
 0.5 to 12 mm
 Reversible Mfg. Tolerance for PPG
 IS : 7859-1975 & IS : 919-1963
 05 to 40 mm Taperlock
 Blank Design : as per IS : 6244 - 1980
 40 to 120 mm DISC (Tri-lock) Design Our own design

 120 to 300 mm Plate Type IS - 2251 : 1986
 MT - 1 to MT - 5 Taper Plug Gauge Taper Lock
 IS - 2251 : 1986

 ISO-30 TO ISO 50 Taper Plug Gauge Taper Lock
 IS 9475 : 1986

 THREAD & PLAIN RING GAUGES
 Thread Ring Gauges : (Parallel & Taper)
 Range : 3 to 150 mm Dia.
 Taper : 1:16
 Specification : As per IS, BS, DIN & American Stds.

 MSR & Plain Ring Gauges
 Range : 0.5 to 200 mm
 Specificaition : IS : 3485 & IS : 3455 - 1985

 Taper Ring Gauges
 MT-1 to MT-5
 ISO - 30 to ISO - 50

 SNAP GAUGES & MEASURING PINS
 Snap Gauges :
 Nominal Range - Upto 160 mm, single ended progressive type plate  snap gauges as per IS : 1991.
 Above 160 mm our standard design.
 Double ended snap gauges as per IS : 4583-1968
 Manufacturing tolerance as per IS : 3455-1971, IS : 919-1963.
