| Products :- |

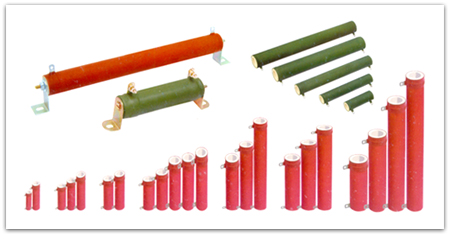

Silicon Radial Coated Resistors |
|
| Specification |
| Power Ratings |
: |
10 Watts to 1000 Watts |
| Ohmic Value |
: |
0.1Ω to 250KΩ |
| Ohmic Tolerance |
: |
Standard ±5% Lower Tolerances Available |
| Temprature Co-efficient |
: |
±50ppm/ºC to ±200ppm/ºC |
| Surface Temprature |
: |
300ºC at 40ºC Ambient |
| Dielectric Strength |
: |
1000V a.c. for 1 Minute |
| Insulation Resistance |
: |
>2000MΩ at 500V a.c. |
| Overload |
: |
10x for 5 seconds |
|
| |
| Features |
| 1) Complete Welded Construction |
| 2) Non-Inductive Types Available |
| 3) Good Surge and Pulse Performance |
| 4) Choice of 3 Physical configurations: (i) Fixed, (ii) Tapped, (iii) Adjustable |
| 5) Custom Designed Resistors & Assemblies Available on Request |
| 6) Mounting Accessories & Terminal Accessories Available |
| 7) Choice of More Than 40 Sizes Within our Standard Program Ensures That a Best Suitable Resistor Configuration is Always
Available at Relatively Shorter Lead Times. |
|
|
| |

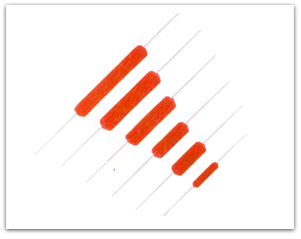

Silicone Coated Axial Resistors (SA Series) : |
|
| Specification |
| Power Ratings |
: |
3 Watts to 20 Watts |
| Ohmic Value |
: |
0.1Ω to 50KΩ |
| Ohmic Tolerance |
: |
Standard ±5%. Lower Tolerances Available. |
| Temprature Co-efficient |
: |
±50ppm/ºC to ±200ppm/ºC |
| Dielectric Strength |
: |
1000V a.c. for 1 Minute |
| Insulation Resistance |
: |
>2000MΩ at 500V a.c. |
| Overload |
: |
10x for 5 seconds |
|
| Features |
| 1) Complete Welded Construction. |
| 2) Non-Inductive Types Available |
| 3) Flame Proof Coatings Available |
| 4) Exceptional Stability & Performance over a Period of Time |
|
|
| |

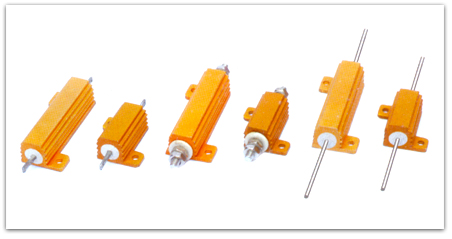

Aluminum Housed - Power Resistors (AH-P Series) : |
|
| Specification |
| Power Ratings |
: |
25 Watts to 500 Watts |
| Ohmic Value |
: |
0.1Ω to 10KΩ |
| Ohmic Tolerance |
: |
Standard ±5%. Closer Tolerances Available. |
| Temprature Co-efficient |
: |
±50ppm/ºC to ±200ppm/ºC |
| Dielectric Strength |
: |
2000V a.c. for 1 Minute |
| Insulation Resistance |
: |
>2000MΩ at 500V a.c. |
| Overload |
: |
5X for 5 seconds |
|
| Features |
| 1) High Power to Size Ratio. |
| 2) Choice of Terminations: [1] Standard Leads [2] Copper Wire Lead [3] Screw Terminals. |
| 3) NON-INDUCTIVE Types Available. |
| 4) High Temperature Resisting Hard Anodising Aluminium Housing. |
| 5) Good Stability & Reliability Against Severity of Climatic Conditions & Other Environmental Abuses. |
|
| |

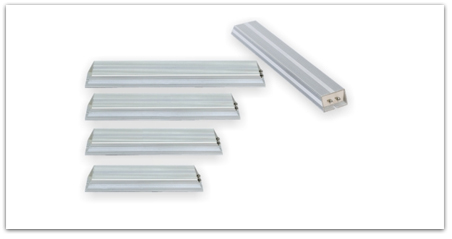

Aluminum Housed - Braking Resistors (AH-B Series) : |
|
| Specification |
| Power Ratings |
: |
60 Watts to 1200 Watts in Single Module |
| Ohmic Value |
: |
0.1Ω to 50KΩ |
| Ohmic Tolerance |
: |
Standard ±5%. Closer Tolerances Available. |
| Temprature Co-efficient |
: |
±50ppm/ºC to ±200ppm/ºC |
| Dielectric Strength |
: |
2000V a.c. for 1 Minute |
| Insulation Resistance |
: |
>2000MΩ at 500V a.c. |
| Overload |
: |
5X for 5 seconds |
|
| Features |
| 1) High Power to Size Ratio. |
| 2) Specially designed for DBR applications. Can also be remodeled for other uses |
| 3) Excellent short term overload capacity. |
| 4) Small and Sleek design. Can easily be mounted in conjusted control panels. |
| 5) High Temperature Resisting Hard Anodising Aluminium Housing. |
| 6) High power ratings can be achieved by multiplying individual resistors to form DBR banks. |
| 7) NON-INDUCTIVE types available. |
| 8) Rugged Construction. |
| 9) Choice of Terminations: [1] Lug Terminations [2] Flying Leads. |
|
|
| |
|
