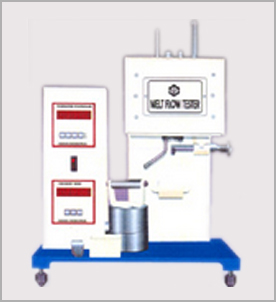

Melt Flow Index Tester
(According to ASTM D 1238 to 1295) |
| TOP |
| This
instrument measures the rate of extrusion of molten resins
through a die of specified length and diameter under
prescribed conditions of temperature, load, piston position. |
| |
|
SPECIFICATION |
| |
| Instrument
with the following accessories are supplied Digital Timer,
Temp. Controller (PID), the piston, eliminating hole, barrel
cleaner, cleaner hole Scoop, the total weight of 2.16 kg ..
and 5.0 kilograms. |
| |
1. Max. Temp. Ambient
to 300 ° C
2. Resolution:
0.10 ° C Accuracy: + 0.20 ° C
Timer 0-99.9 min. |
| |
 |
|
 |
|
| |
| |
| |
| |

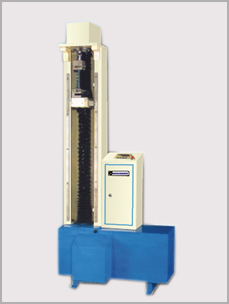

Universal Tensile Testing
Machine - Single Column |
|
TOP |
| Shanta
Engineering Universal Testing Machines are electro
mechanical machines with digital display of load &
displacement & pulley belt system for changing speeds. The
machines are designed for testing various materials like
rubber, plastics, cables, leather, paper, plywood and
metals. Tension, compression, bend and flexural tests can be
performed on these machines with suitable grips and
fixtures. The machines are powder coated for elegant look.
The critical components are plated for rust prevention and
durability. |
| |
| MAIN
FEATURES : |
- Selection of different speeds by
pulley belt system
- Facility to mount different load
cells.
- Facility to mount various grips /
fixtures for different tests and materials like rubber,
plastics, cables, leather, paper, plywood and metals
|
| |
|
|
 |
|
| |
| |
| |
| |
Izod Impact Tester -
Charpy Impact Testers ( AS PER ASTM D-256 )
|
|
TOP |
| The resistance to
breakage by flexural shock of plastics and Electrical insulating
materials as indicated by the energy extracted from standardized
pendulum type hammers mounted on standardized machines in
breaking standard specimens with pendulum swing. The energy
absorbed per unit of specimen width is reported in joules. |
| |
|
|
 |
|
| |
| |
| |
| |
DART IMPACT TESTER AS PER
ASTM D - 1709 |
|
TOP |
The machine is used to determine the impact
resistance of the plastic film. A known hemispherical shaped
dart is made to fall on the plastic film correctly at the centre
of the specimen. The specimen is clamped in such a way so as not
to have any wrinkles on the top surface of the specimen. The
machine can be supplied with the vacuum pump for additional cost
with the machine for this purpose.
The dart is made to fall on the specimen with
the help of an electromagnet provided.
The machine is provided with a counter to count
the number of drops. |
| |
|
|
 |
|
| |
| |
| |
 |
| |
| |
|
| |
