Vacuum Impregnation Plants, Field Coils Manufacturer, Solenoid Coil Manufacturer, Interpole Coils Manufacturer, Mumbai, India
Coils For AC & DC Brakes, Solenoids Valves, Magnet Contactors, Clutches, Chucks, Eddy Current Drive, High Volt Transformers, AC/DC Solenoids


PRODUCTS

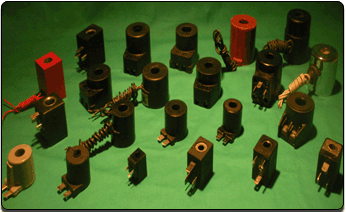

SOLENOID VALVE COILS PNEUMATIC TYPE

  Solenoid Valve Coils Pneumatic Type

Solenoid valves coils 2 PIN NYLON MOULDED COILS 8WT (12 V.D.C. TO 440 V.A.C. AVAILABLE)
COILS NAME A B C D E F REST AT 230 VOLT
COM PAIR 41.5 40 -- 15 -- 31.5 625
SMALL AVON 42 40 -- 16 -- 33.5 600
BIG AVCON 40 39 -- 18 -- 41 900
  .............................................................................................................................................................................................

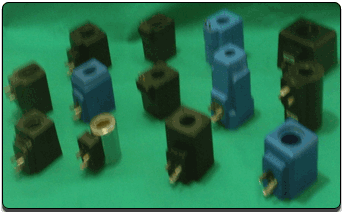

SOLENOID VALVE COILS HYDRAULIC TYPE

  Solenoid Valve Coils Hydraulic Type

M S BODY WITH COILS (12 V.D.C. TO 440 V.A.C. AVAILABLE)
COILS NAME A B C D E F REST AT 230 VOLT
LISK IRELAND TYPE T 54 B 64 70 -- 25 -- 46 10
VICKERS SMALL 46 46 -- 21 -- 38 38
VICKERS MEDIUM 47 47 -- 24 -- 44.5 144
VICKERS BIG T 38 B 46 T 38 B 46 -- T 16 B 20.5 -- 47.5 120
YUKEN SMALL 39 47 -- 20 -- 51 166
YUKEN BIG 54 67 -- 26.5 -- 47.5 41
PARKER TYPE T 32 B 41 46 -- 19.2 -- 45 48

  .............................................................................................................................................................................................


FIELD COILS, HV COILS & INSULATOR RING


Fields coils for Alternator, Generator, Traction Motors, Pole & Interpole Coils for Traction Motors, Air Core Reactors etc as per Customer requirment. We can manufacture upto 5TON KG Coils. HV Coils and insulator rings for Precipitator Transformers upto 42 KV.
Fields coils

  .............................................................................................................................................................................................



IMPEDENCE BOND & INTERPOLE COILS



We are manufacturing Edge Wound Coils such as Impedence Bond Coils for Railway Signaling and Interpole Coils for Motors and Generators. We can manufacture as per the requirements of the customer with any class of insulation.
Impedence Bond & Interpole Coils
