Fabricators Of : - Vertical And Horizontal Spiral Tanks, Rectangular tanks, Ventures, Conical Bottom Tanks. |
|
| |
WHAT IS SPIRAL TANK ?
A popular name is both Europe and USA, Spiral tanks have also been available for the past two decades in India. Developed and patented by BAUKU of Germany, the tanks are manufactured by a unique process known as Spiral winding.
The spiral tank process involves extruding a special engineering grade of High Density Polyethylene (HDPE) and Poly propylene (PP) in to a strip and then winding it spirally and continuously over a rotating mandrel to form a homogenous, seamless shell..
The fabricated tanks in HDPE/ P.P. are also available in wide ranges, shapes & sizes in vertical, horizontal and rectangular to suit our customer's requirements. |
|
| |
|
|
| |
VERTICAL AND HORIZONTAL SPIRAL TANKS
Ranging in diameter from 300 mm to 3000 mm (standard Internal diameters 300, 400, 500, 600, 800, 900, 1000, 1200, 1600, 2000, 2400, 3000 mm) with a storage capacity from 0.5 KL to 40 KL. Rectangular and Square tanks also available in range of sizes. |
|
| |
|
Top |
| |

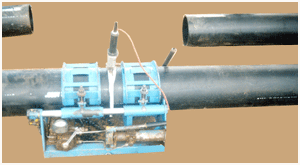

HDPE Pipe Line
|
|
| |
|
Top |
| |
1) Vertical Tanks
Ranging in diameters from 300 m_ to 3000 mm and with a storage capacity upto 40,000 liters.
|
|
|
|
| |
|
Top |
| |
2) Ventures
Available in diameters ranging from 300 mm to 2000 mm. |

|
|
|
| |
|
Top |
| |
3) Horizontal Tanks
Available in diameters ranging from 300 mm to 3000 mm along with M.S. supports.
|
|
|
|
| |
|
Top |
| |
4) Rectangular Tanks
Available in a range of sizes. Suitably reinforced with a mild steel frame.
|
|
|
|
| |
|
Top |
| |
5) Conical Bottom Tanks
Ideal for effluent treatment & reaction where settling tanks are needed.
|
|
|
|
| |
|
|
| |
